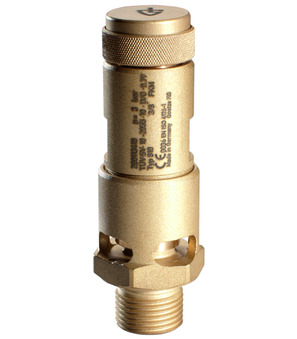

Veiligheidsventiel SV01-12-11-8-2A
safety valve series SV01-2A; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. test report EN-10204-2.2; seal FKM; connection G 1/2"; DN 11mm; set pressure 12bar
Voer nr. in: 84814090
Land van herkomst: Duitsland
Gewicht: 0.188 kg
Kort Artikelnummer: SV01121182A
Land van herkomst: Duitsland
Gewicht: 0.188 kg
Kort Artikelnummer: SV01121182A
safety valve series SV01-2A; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. test report EN-10204-2.2; seal FKM; connection G 1/2"; DN 11mm; set pressure 12bar
| <<Abmessung>> | |
|---|---|
| Aansluiting | G 1/2" |
| DN | 11 mm |
| <<Materialien>> | |
| Afdichting | FKM |
| <<Eigenschaften>> | |
| Insteldruk | 8 bar |
Gegevensbladen, instructies, 3D-bestanden en certificaten...
In jouw taal
ZIPData Sheets
1Datasheet_Veiligheidsventiel Serie SV01_NL.pdf
Downloaden
CAD / 3D
1CADSTEP_SV011211X.stp
Downloaden
Datové listy
1Datový list_pojistný ventil série SV01_CS.pdf
Downloaden
Data Sheets
1Datablad_Sikkerhedsventil Serie SV01_DA_DK.pdf
Downloaden
Datenblätter
1Datenblatt_Sicherheitsventil Serie SV01_DE.pdf
Downloaden
Data Sheets
1Δελτίο δεδομένων_Βαλβίδα ασφαλείας Σειρά SV01_EL_GR.pdf
Downloaden
Data Sheets
1Data sheet_Safety valve Series SV01_EN.pdf
Downloaden
Data Sheets
1Ficha técnica_Válvula de seguridad Serie SV01_ES.pdf
Downloaden
Data Sheets
1Tietolehti_Varoventtiili Sarja SV01_FI.pdf
Downloaden
Data Sheets
1Fiche technique_Soupape de sécurité Série SV01_FR.pdf
Downloaden
Data Sheets
1Podatkovni list_Sigurnosni ventil Serija SV01_HR.pdf
Downloaden
Adatlapok
1Adatlap_biztonsági szelep sorozat SV01_HU.pdf
Downloaden
Data Sheets
1Scheda tecnica_Valvola di sicurezza Serie SV01_IT.pdf
Downloaden
Data Sheets
1Datablad_Sikkerhetsventil Serie SV01_NB_NO.pdf
Downloaden
Karty katalogowe
1Arkusz danych_zawór bezpieczeństwa Seria SV01_PL.pdf
Downloaden
Data Sheets
1Fișă de date_Supapă de siguranță serie SV01_RO.pdf
Downloaden
Podatkovni listi
1Podatkovni list_Varnostni ventil serija SV01_SL.pdf
Downloaden
Data Sheets
1Tehnički list_sigurnosni ventil serije SV01_SRLATIN.pdf
Downloaden
Data Sheets
1Datablad_Säkerhetsventil Serie SV01_SV.pdf
Downloaden
Er zijn geen reserveonderdelen beschikbaar voor dit product.
