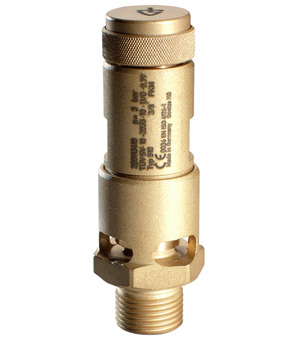

Säkerhetsventil SV01-12-11-8-2A
safety valve series SV01-2A; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. test report EN-10204-2.2; seal FKM; connection G 1/2"; DN 11mm; set pressure 12bar
Ange nr.: 84814090
Ursprungsland: Tyskland
Vikt: 0.188 kg
Kort artikelnummer: SV01121182A
Ursprungsland: Tyskland
Vikt: 0.188 kg
Kort artikelnummer: SV01121182A
safety valve series SV01-2A; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. test report EN-10204-2.2; seal FKM; connection G 1/2"; DN 11mm; set pressure 12bar
| <<Abmessung>> | |
|---|---|
| Anslutning | G 1/2" |
| DN | 11 mm |
| <<Materialien>> | |
| Tätning | FKM |
| <<Eigenschaften>> | |
| Inställningstryck | 8 bar |
Inga reservdelar finns tillgängliga för den här produkten.
