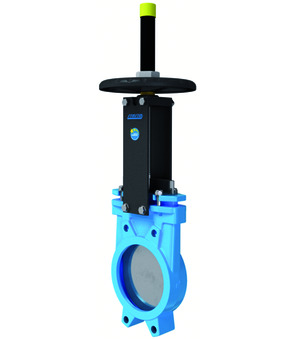

Pladeskydeventil med håndhjul A1V2HS2-5-150-B-02
knife gate valve with handwheel series A1V2HS2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...10bar
Indtast nr.: 84818061
Oprindelsesland: Spanien
Vægt: 0.0 kg
Kort varenummer: A1V2HS25150B02
Oprindelsesland: Spanien
Vægt: 0.0 kg
Kort varenummer: A1V2HS25150B02
knife gate valve with handwheel series A1V2HS2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...10bar
| <<Abmessung>> | |
|---|---|
| DN | 150 mm |
| Indbygningslængde | 60 mm |
| <<Druck>> | |
| Trykområde | 0...10 bar |
Der er ingen reservedele tilgængelige for dette produkt.
