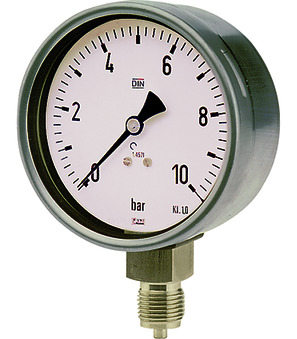

Buisveerdrukmeter MA073-160B-100
bourdon tube manometer series MA073; safety version EN837-1 S3; break-proofed separating plate; blow-out back; body stainless steel measuring unit, motion work stainless steel AISI 316Ti; front glass laminated safety glass; ambient temperature -40...+60°C; medium temperature max. +200°C; connection below; connection 1/2"; diameter 160mm; indicating range 0...160; unit bar; class 1,0
Land van herkomst: Oostenrijk
Gewicht: 0.0 kg
Kort Artikelnummer: MA073160B100
bourdon tube manometer series MA073; safety version EN837-1 S3; break-proofed separating plate; blow-out back; body stainless steel measuring unit, motion work stainless steel AISI 316Ti; front glass laminated safety glass; ambient temperature -40...+60°C; medium temperature max. +200°C; connection below; connection 1/2"; diameter 160mm; indicating range 0...160; unit bar; class 1,0
| <<Abmessung>> | |
|---|---|
| Diameter | 160 mm |
| Aansluiting | 1/2" |
| <<Eigenschaften>> | |
| Weergavebereik | 0...25 |
| Eenheid | bar |
| Klasse | 1,0 |
