Kogelkraan met pneumatische draaiaandrijving Serie BAL1, BAT1 Store
  1. Producten
  2. Appendages
  3. Kogelkranen - automatisch
  4. Kogelkranen - pneumatisch
  5. Kogelkraan met pneumatische draaiaandrijving Serie BAL1, BAT1
  6. BAL1-006-BLTV-D0-ABS51-C001-03-C002-31-LV-2

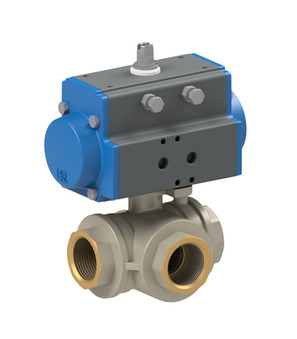

BAL1-006-BLTV-D0-ABS51-C001-03-C002-31-LV-2

BAL1-006-BLTV-D0-ABS51-C001-03-C002-31-LV-2

BAL1-006-BLTV-D0
Kogelkraan met pneumatische draaiaandrijving Serie BAL1, BAT1; 3-weguitvoering; drieschalig afdichtend; Behuizing, Kogel Messing; Afdichtingen PTFE/FKM/EPDM; dubbelwerkende aandrijving; Stuurdruk 5,5...8bar; Mediumtemperatuur -20...+160°C; RP 1"; Nominale diameter 25mm; Drukbereik 0-16bar; Inbouwlengte 105mm; Aandrijving PAD052; Kogelboring L
ABS51
Opgebouwd stuurventiel Serie ABS; NAMUR; Geluidsdemper; Standaardspoel C001; Stekkerbreedte 22mm; 5/2-weg NAMUR-magneetventiel (NM52W1S-PR); Aandrijving PAD052-270
C001-03
Magneetspoel Type C001; Stekkerbreedte 22mm; Spanning 24VDC / 48V/50-60Hz
C002-31-LV-2
Apparaatcontactdoos; Stekkerbreedte 22mm; met ingebouwde gele LED en VDR; Spanning 24VAC/DC

Kugelhahn mit Druckluftdrehantrieb Serie BAL1, BAT1
Voer nr. in: 84818081
Land van herkomst: Italië
Gewicht: 3.38 kg
Kort Artikelnummer: BAL1006BLTVD0ABS51C00103C00231LV2
https://www.stasto.com/web/image/product.template/200411/image_1920?unique=bcfc56d

BAL1-006-BLTV-D0
Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAL1, BAT1; 3-potna-izvedba; troslojno tesnjenje; ohišje, krogla medenina; tesnila PTFE/FKM/EPDM; dvosmerno delujoč pogon; Krmilni tlak 5,5...8bar; temperatura medija -20...+160°C; RP 1"; nazivna širina 25mm; območje tlaka 0-16bar; Vgradna dolžina 105mm; Pogon PAD052; Krogelna luknja L
ABS51
Montažni krmilni ventil serija ABS; NAMUR; Dušilci zvoka; standardna tuljava C001; širina vtiča 22mm; 5/2-potni-NAMUR-magnetni ventil (NM52W1S-PR); Pogon PAD052-270
C001-03
Magnetna tuljava Tip C001; širina vtiča 22mm; napetost 24VDC / 48V/50-60Hz
C002-31-LV-2
vtičnica; širina vtiča 22mm; z vgrajeno LED-rumeno in VDR; napetost 24VAC/DC

591,50 € 591.5 EUR 591,50 €
