3/2-weg magneetventiel Serie 31A Store
  1. Producten
  2. Appendages
  3. Magneetventielen voor vloeistoffen en gassen
  4. Overig assortiment - A01
  5. 3/2-weg magneetventiel Serie 31A
  6. 31A2FV20-U-BDA08024CS-C003-32-6

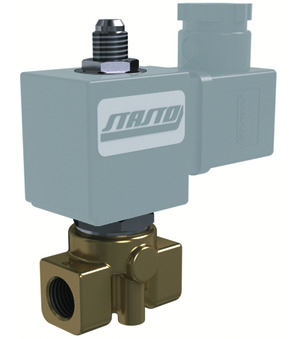

3/2-weg magneetventiel 31A2FV20-U-BDA08024CS-C003-32-6

3/2-weg magneetventiel 31A2FV20-U-BDA08024CS-C003-32-6

31A2FV20-U
3/2-weg magneetventiel Serie 31A; direct gestuurd; Behuizing Messing; Geleidebuis Roestvast staal eendelig; Afdichting FKM; Mediumtemperatuur -10...+120°C; Universele functie (Drukaansluiting naar keuze); Standaardspoel BDA; Stekkerbreedte 32mm; G 1/4"; DN 2,0/1,5mm
BDA08024CS
Magneetspoel Type BDA; Standaard; Stekkerbreedte 32mm; Spanning 24VDC
C003-32-6
Apparaatcontactdoos; Stekkerbreedte 32mm; Standard; Spanning 0...250VAC/DC

3/2-Wege-Magnetventil Serie 31A
3/2-Wege-Magnetventil Serie 31A
Voer nr. in: 84818099
Land van herkomst: Italië
Gewicht: 0.34 kg
Kort Artikelnummer: 31A2FV20UBDA08024CSC003326
https://www.stasto.com/web/image/product.template/204706/image_1920?unique=eb38ccc

31A2FV20-U
3/2-potni magnetni ventil serija 31A; direktno krmiljenje; telo medenina; Vodilna cev legirano jeklo enodelna; tesnilo FKM; temperatura medija -10...+120°C; univerzalna funkcija (poljuben priključek tlaka); standardna tuljava BDA; širina vtiča 32mm; G 1/4"; DN 2,0/1,5mm
BDA08024CS
Magnetna tuljava Tip BDA; standard; širina vtiča 32mm; napetost 24VDC
C003-32-6
vtičnica; širina vtiča 32mm; Standard; napetost 0...250VAC/DC

101,80 € 101.8 EUR 101,80 €

price on request

  • Binnendraad
  • DN
  • Inbouwlengte
  • Functie
  • Stekkerbreedte
  • Apparaatcontactdoos
  • Uitvoering
  • Spanning
  • Spanningstype
  • Druk AC/DC
  • Afdichting
  • Spoel
  • Mediumtemperatuur
  • Goedkeuring

Deze combinatie bestaat niet.

Beschikbaarheid:
Contact

Delen

Types of construction
Stekkerbreedte 32 mm
<<Ausführung>>
Uitvoering Standaard
Electrical figures
Spanning 24VDC
Spanningstype DC
<<Eigenschaften>>
Spoel BDA
Goedkeuring CE

Gegevensbladen, instructies, 3D-bestanden en certificaten...

In jouw taal
ZIP
Data Sheets
2
Datasheet_Apparaatcontactdoos_NL.pdf
C003-32-6
Downloaden
Datasheet_Magneetspoel Type BDA_NL.pdf
BDA08024CS
Downloaden
CAD / 3D
3
.stp
BDA08024CS
Downloaden
CADSTEP_31A2FV20U.stp
31A2FV20-U
Downloaden
CADSTEP_C003326.stp
C003-32-6
Downloaden

ZIP
Datové listy
2
Datový list_konektor_CS.pdf
C003-32-6
Downloaden
Datový list_magnetická cívka typ BDA_CS.pdf
BDA08024CS
Downloaden
Prohlášení o shodě
1
Prohlášení o shodě_magnetická cívka typ BDA_CS.pdf
BDA08024CS
Downloaden

ZIP
Data Sheets
2
Datablad_Apparatstikdåse_DA_DK.pdf
C003-32-6
Downloaden
Datablad_Magnetspole Type BDA_DA_DK.pdf
BDA08024CS
Downloaden

ZIP
Datenblätter
2
Datenblatt_Gerätesteckdose_DE.pdf
C003-32-6
Downloaden
Datenblatt_Magnetspule Typ BDA_DE.pdf
BDA08024CS
Downloaden
Konformitätserklärungen
1
Konformitätserklärung_Magnetspule Typ BDA_DE.pdf
BDA08024CS
Downloaden

ZIP
Data Sheets
2
Δελτίο δεδομένων_Πηνίο ηλεκτρομαγνήτη Τύπος BDA_EL_GR.pdf
BDA08024CS
Downloaden
Δελτίο δεδομένων_Συσκευαστική πρίζα συσκευής_EL_GR.pdf
C003-32-6
Downloaden

ZIP
Data Sheets
2
Data sheet_Coil Type BDA_EN.pdf
BDA08024CS
Downloaden
Data sheet_Connector_EN.pdf
C003-32-6
Downloaden
Declarations of Conformity
1
Declaration of conformity_Coil Type BDA_EN.pdf
BDA08024CS
Downloaden

ZIP
Data Sheets
2
Ficha técnica_Bobina magnética Tipo BDA_ES.pdf
BDA08024CS
Downloaden
Ficha técnica_Toma de equipo_ES.pdf
C003-32-6
Downloaden

ZIP
Data Sheets
2
Tietolehti_Laiteliitinpistorasia_FI.pdf
C003-32-6
Downloaden
Tietolehti_Magneettikela Tyyppi BDA_FI.pdf
BDA08024CS
Downloaden

ZIP
Data Sheets
2
Fiche technique_Bobine électromagnétique Type BDA_FR.pdf
BDA08024CS
Downloaden
Fiche technique_Prise d’appareil_FR.pdf
C003-32-6
Downloaden

ZIP
Data Sheets
2
Podatkovni list_Magnetska zavojnica Tip BDA_HR.pdf
BDA08024CS
Downloaden
Podatkovni list_Utičnica za uređaj_HR.pdf
C003-32-6
Downloaden

ZIP
Adatlapok
2
Adatlap_mágnestekercs típus BDA_HU.pdf
BDA08024CS
Downloaden
Adatlap_stekker_HU.pdf
C003-32-6
Downloaden
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_mágnestekercs típus BDA_HU.pdf
BDA08024CS
Downloaden

ZIP
Data Sheets
2
Scheda tecnica_Bobina magnetica Tipo BDA_IT.pdf
BDA08024CS
Downloaden
Scheda tecnica_Presa per apparecchi_IT.pdf
C003-32-6
Downloaden

ZIP
Data Sheets
2
Datablad_Apparatkontakt_NB_NO.pdf
C003-32-6
Downloaden
Datablad_Magnetspole Type BDA_NB_NO.pdf
BDA08024CS
Downloaden

ZIP
Karty katalogowe
2
Arkusz danych_cewka elektromagnetyczna typ BDA_PL.pdf
BDA08024CS
Downloaden
Arkusz danych_wtyczka_PL.pdf
C003-32-6
Downloaden
Deklaracje zgodności
1
Deklaracja zgodności_cewka elektromagnetyczna typ BDA_PL.pdf
BDA08024CS
Downloaden

ZIP
Data Sheets
2
Fișă de date_Bobină solenoid tip BDA_RO.pdf
BDA08024CS
Downloaden
Fișă de date_conector_RO.pdf
C003-32-6
Downloaden

ZIP
Podatkovni listi
2
Podatkovni list_Magnetna tuljava Tip BDA_SL.pdf
BDA08024CS
Downloaden
Podatkovni list_vtičnica_SL.pdf
C003-32-6
Downloaden
Izjave o skladnosti
1
Izjava o skladnosti_Magnetna tuljava Tip BDA_SL.pdf
BDA08024CS
Downloaden

ZIP
Data Sheets
2
Tehnički list_konektor_SRLATIN.pdf
C003-32-6
Downloaden
Tehnički list_namotaj tip BDA_SRLATIN.pdf
BDA08024CS
Downloaden
Declarations of Conformity
1
Deklaracija o usklađenosti_namotaj tip BDA_SRLATIN.pdf
BDA08024CS
Downloaden

ZIP
Data Sheets
2
Datablad_Apparatuttag_SV.pdf
C003-32-6
Downloaden
Datablad_Magnetspole Typ BDA_SV.pdf
BDA08024CS
Downloaden
31A2FV20-U x 1.0 Stk.
31A2FV20-U
3/2-weg magneetventiel Serie 31A; direct gestuurd; Behuizing Messing; Geleidebuis Roestvast staal eendelig; Afdichting FKM; Mediumtemperatuur -10...+120°C; Universele functie (Drukaansluiting naar keuze); Standaardspoel BDA; Stekkerbreedte 32mm; G 1/4"; DN 2,0/1,5mm
BDA08024CS
BDA08024CS x 1.0 Stk.
BDA08024CS
Magneetspoel Type BDA; Standaard; Stekkerbreedte 32mm; Spanning 24VDC
C003-32-6
C003-32-6 x 1.0 Stk.
C003-32-6
Apparaatcontactdoos; Stekkerbreedte 32mm; Standaard; Spanning 0...250VAC/DC
