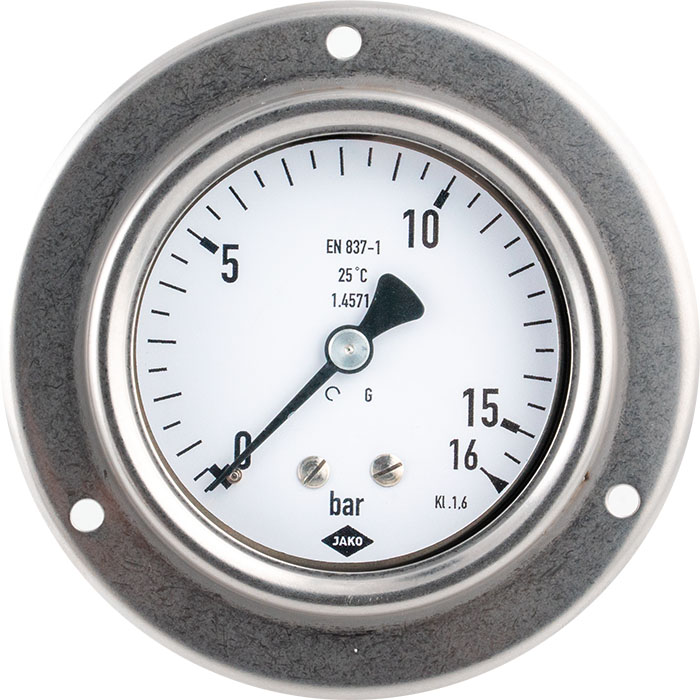

MA042-50-R-10
bourdon tube manometer; body, front ring stainless steel AISI 304; measuring unit stainless steel AISI 316L, motion work, connection stainless steel AISI 316Ti; front glass flat instrument glass; ambient temperature -40...+60°C; medium temperature max. +200°C; connection rear; class 1,6; diameter 63mm; indicating range 0…16; unit bar; connection 1/4"; class 1,6
Skriv inn nr.: 90262040
Opprinnelsesland: Østerrike
Vekt: 0.0 kg
Kort varenummer: MA04250R10
Opprinnelsesland: Østerrike
Vekt: 0.0 kg
Kort varenummer: MA04250R10
bourdon tube manometer; body, front ring stainless steel AISI 304; measuring unit stainless steel AISI 316L, motion work, connection stainless steel AISI 316Ti; front glass flat instrument glass; ambient temperature -40...+60°C; medium temperature max. +200°C; connection rear; class 1,6; diameter 63mm; indicating range 0…16; unit bar; connection 1/4"; class 1,6
| <<Abmessung>> | |
|---|---|
| Diameter | 63 mm |
| Tilkobling | 1/4" |
| <<Eigenschaften>> | |
| Visningsområde | 0...16 |
| Enhet | bar |
| Klasse | 1,6 |
Ingen reservedeler er tilgjengelige for dette produktet.
