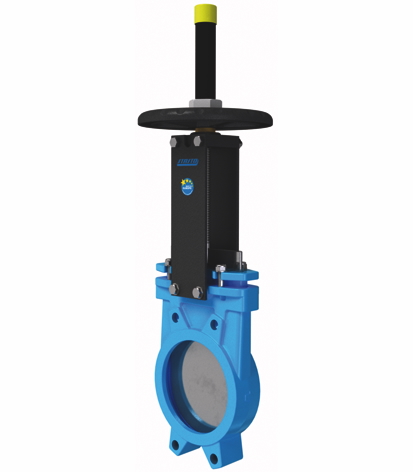

A1V2H2-5-200-PIBD4
knife gate valve with handwheel series A1V-PIB; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 200mm; length 60mm; pressure range 0...8bar; stem extension 800mm
Opprinnelsesland: Spania
Vekt: 0.0 kg
Kort varenummer: A1V2H25200PIBD4
knife gate valve with handwheel series A1V-PIB; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 200mm; length 60mm; pressure range 0...8bar; stem extension 800mm
| <<Abmessung>> | |
|---|---|
| DN | 200 mm |
| Byggelengde | 60 mm |
| <<Druck>> | |
| Trykkområde | 0...10 bar |
| <<Eigenschaften>> | |
| Medietemperatur | -5...+90 °C |
