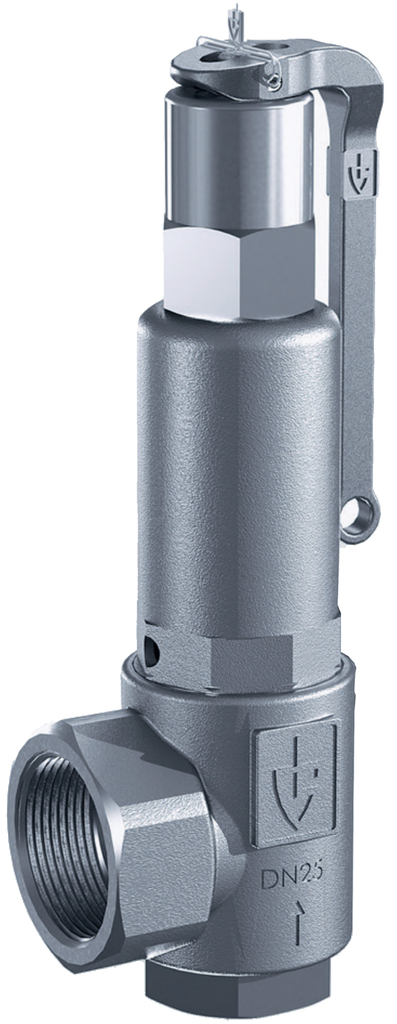

SV59-34NW-18-145PS-V-3M
Valvola di sicurezza; con leva di sfiato; con soffietto metallico; Corpo Acciaio inox 1.4404; Guarnizione FKM; Applicazione: Liquidi; Temperatura del fluido -20…+200°C; DN 18mm; Ingresso Filetto esterno 3/4"NPT; uscita Filettatura interna 11/4"NPT; Pressione di regolazione 145PSI; incl. Certificato di collaudo EN-10204-3.1; per materiale, pressione, funzione e tenuta; Certificato ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME)
Paese di origine: Germania
Peso: 1.436 kg
Numero articolo breve: SV5934NW18145PSV3M
Sicherheitsventil Serie SV59; mit Lüftehebel; mit Metallfaltenbalg; Körper Edelstahl 1.4404; Dichtung FKM; Anwendung: Flüssigkeiten; Mediumstemperatur -20…+200°C; DN 18mm; Eintritt Aussengewinde 3/4"NPT; Austritt Innengewinde 11/4"NPT; Einstelldruck 10bar; inkl. Abnahmeprüfzeugnis EN-10204-3.1; für Material, Druck, Funktion und Dichtheit; Zertifikat ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME)
