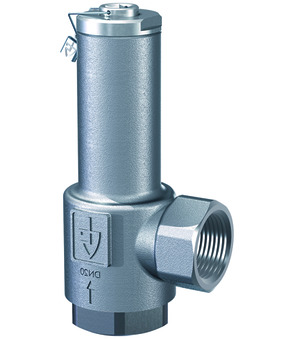

Valvola di scarico della pressione RV17-114-30-2/8-T
Entlastungsventil Serie RV17; öl- und gasdichter Oberteil; Körper 1.4408; ohne Bauteilprüfnummer; Anschluss 11/4"; DN 30mm; Druckbereich 12...20bar; Dichtung PTFE/FKM; Mediumstemperatur -60…+225°C
Inserisci il n.: 84814010
Paese di origine: Germania
Peso: 0.0 kg
Numero articolo breve: RV171143028T
Paese di origine: Germania
Peso: 0.0 kg
Numero articolo breve: RV171143028T
Entlastungsventil Serie RV17; öl- und gasdichter Oberteil; Körper 1.4408; ohne Bauteilprüfnummer; Anschluss 11/4"; DN 30mm; Druckbereich 12...20bar; Dichtung PTFE/FKM; Mediumstemperatur -60…+225°C
| <<Abmessung>> | |
|---|---|
| Filettatura interna | G 1 1/4" |
| DN | 30 mm |
| <<Druck>> | |
| Campo di pressione | 12...20 bar |
| <<Materialien>> | |
| Guarnizione | PTFE/FKM |
| <<Eigenschaften>> | |
| Temperatura del fluido | -60...+225 °C |
