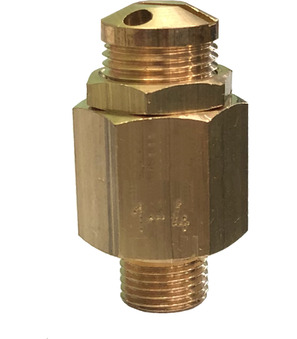

Valvola di scarico della pressione Serie RV01; Corpo, Parti interne Ottone; Guarnizione FKM; regolazione manuale della pressione di scarico (Controdado); Temperatura del fluido -20…+180°C; senza numero di collaudo del componente; G 1/4"; Campo di pressione 10...18bar
Entlastungsventil Serie RV01; Körper, Innenteile Messing; Dichtung FKM; manuelle Einstellung des Abblasedruckes (Kontermutter); Mediumstemperatur -20…+180°C; ohne Bauteilprüfnummer; G 1/4"; Druckbereich 10...18bar
Specifiche tecniche
| Campo di pressione | 10...18 bar |
|---|---|
| DN | 3 mm |
| Temperatura del fluido | 0...180 °C |
| Filetto esterno | G 1/4" |
| Campo di pressione | 10...18 bar |
| DN | 3 mm |
| Temperatura del fluido | 0...180 °C |
| Filetto esterno | G 1/4" |
| Marca | STASTO |
RV01-14-3-10/18
