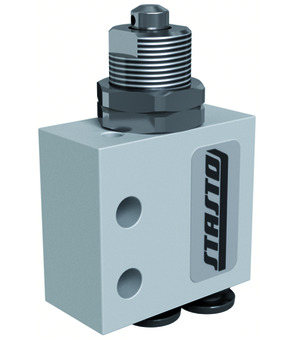

Valvola 3/2 vie Serie MV; Diametro nominale 2,5mm; per montaggio a pannello; Campo di pressione 0...10bar; Portata 60Nl/min; Azionamento Cam/molla; Forza di azionamento a 6 bar: 12N; Attacco 4mm; Funzione NC
Paese di origine: Italia
Peso: 0.05 kg
Numero articolo breve: MV304
Valvola 3/2 vie Serie MV; Diametro nominale 2,5mm; per montaggio a pannello; Campo di pressione 0...10bar; Portata 60Nl/min; Azionamento Cam/molla; Forza di azionamento a 6 bar: 12N; Attacco 4mm; Funzione NC
Specifiche tecniche
| Attacco | 4 mm |
|---|---|
| Azionamento | Camma/molla |
| Campo di pressione | 0...10bar |
| Portata | 60Nl/min |
| Attacco | 4 mm |
| Azionamento | Camma/molla |
| Campo di pressione | 0...10bar |
| Portata | 60Nl/min |
| Funzione | NC |
| DN | 2,5 mm |
| Forza di azionamento a 6 bar | 6 N |
MV304
