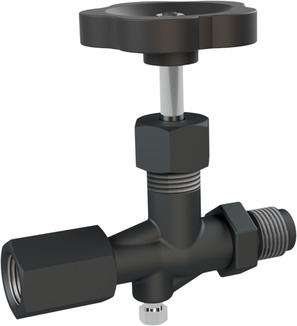

Valvola di intercettazione per manometro Serie MSV01; secondo DIN 16270; perno/Giunto di serraggio; Attacco 1/2"; Pressione nominale 400bar; Materiale Stahl; temperatura massima del fluido 120°C; Guarnizione Graphit
Manometer-Absperrventil Serie MSV01; gemäß DIN 16270; Zapfen/Spannmuffe; Anschluss 1/2"; Nenndruck 400bar; Material Stahl; max. Mediumstemperatur 120°C; Dichtung Graphit
Specifiche tecniche
| Attacco | 1/2" |
|---|---|
| Pressione di esercizio | max. 400 bar |
| Material | Acciaio |
| Temperatura del fluido | max. 120 °C |
| Attacco | 1/2" |
| Pressione di esercizio | max. 400 bar |
| Material | Acciaio |
| Temperatura del fluido | max. 120 °C |
| Guarnizione | Grafite |
MSV01-12-U1
