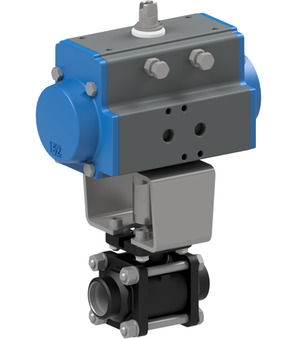

Valvola a sfera con attuatore pneumatico rotativo Serie BA078-D0B/D01-A; ATEX II 2 G/D; Estremità da saldare; Corpo Acciaio; Sfera 1.4301; Guarnizioni rinforzato in PTFE/FKM; attuatore doppio effetto ATEX II 2 G/D c T6; Pressione di pilotaggio 5,5...8bar; Temperatura del fluido -10...+198°C; Diametro nominale 15mm; Campo di pressione Vapore 0...15bar; Lunghezza d’installazione 65mm; Attuatore PAD052
Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01-A; ATEX II 2 G/D c T3; Anschweißenden; Gehäuse Stahl; Kugel 1.4301; Dichtungen PTFE-verstärkt/FKM; doppeltwirkender Antrieb ATEX II 2 G/D c T6; Steuerdruck 5,5...8bar; Mediumstemperatur -10...+198°C; Nennweite 15mm; Druckbereich Dampf 0...15bar; Einbaulänge 65mm; Antrieb PAD052
Specifiche tecniche
| Campo di pressione | 0...64 bar |
|---|---|
| DN | 15 mm |
| Campo di pressione Vapore | 0...15 bar |
| Lunghezza di costruzione | 65 mm |
| Campo di pressione | 0...64 bar |
| DN | 15 mm |
| Campo di pressione Vapore | 0...15 bar |
| Lunghezza di costruzione | 65 mm |
| Esecuzione | ATEX |
BA078-15-D0B-A
Documenti
Czech / Čeština
Schede tecniche
1-
PDF
Datový list · kulový kohout s otočným pneumatickým pohonem série BA078-D0B/D01-A · CS
Scheda tecnica 321 KB Aggiornato il 13/06/2026
German / Deutsch
Schede tecniche
1-
PDF
Datenblatt · Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01-A · DE
Scheda tecnica 321 KB Aggiornato il 13/06/2026
English
Schede tecniche
1-
PDF
Data sheet · Ball valve with pneumatic actuator Series BA078-D0B/D01-A · EN
Scheda tecnica 318 KB Aggiornato il 13/06/2026
Hungarian / Magyar
Schede tecniche
1-
PDF
Adatlap · pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA078-D0B/D01-A · HU
Scheda tecnica 322 KB Aggiornato il 13/06/2026
Polish / Język polski
Schede tecniche
1-
PDF
Arkusz danych · zawór kulowy z napędem pneumatycznym Seria BA078-D0B/D01-A · PL
Scheda tecnica 322 KB Aggiornato il 13/06/2026
Slovenian / slovenščina
Schede tecniche
1-
PDF
Podatkovni list · Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA078-D0B/D01-A · SL
Scheda tecnica 319 KB Aggiornato il 13/06/2026
Serbian (Latin) / srpski
Schede tecniche
1-
PDF
Tehnički list · kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01-A · SRLATIN
Scheda tecnica 320 KB Aggiornato il 13/06/2026
