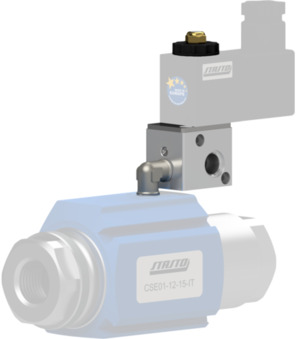

Monterad styrventil ABS77-C001-03-C002-31-LV-2

Monterad styrventil ABS77-C001-03-C002-31-LV-2

ABS77
Monterad styrventil Serie ABS; Ljuddämpare; passar för Koaxialventil Serie CSE; 3/2-Wegemagnetventil (PS125-18-C); Standardspole C001; Kontaktbredd 22mm
C001-03
Magnetspole Typ C001; Kontaktbredd 22mm; Spänning 24VDC / 48V/50-60Hz
C002-31-LV-2
Apparatuttag; Kontaktbredd 22mm; med inbyggd LED-gul och VDR; Spänning 24VAC/DC

Ange nr.: 84812090
Ursprungsland: Italien
Vikt: 0.154 kg
Kort artikelnummer: ABS77C00103C00231LV2
https://www.stasto.com/web/image/product.template/196999/image_1920?unique=b4e1744

ABS77
Montažni krmilni ventil serija ABS; Dušilci zvoka; primerno za Koaksialni ventil serija CSE; 3/2-Wegemagnetventil (PS125-18-C); standardna tuljava C001; širina vtiča 22mm
C001-03
Magnetna tuljava Tip C001; širina vtiča 22mm; napetost 24VDC / 48V/50-60Hz
C002-31-LV-2
vtičnica; širina vtiča 22mm; z vgrajeno LED-rumeno in VDR; napetost 24VAC/DC

68,30 € 68.3 EUR 68,30 €

price on request

  • Kontaktbredd
  • Utförande
  • Spänning
  • Spole
  • Märke

Kombinationen existerar inte.

Tillgänglighet:
Kontakta oss

Andel

Types of construction
Kontaktbredd 22 mm
<<Ausführung>>
Utförande med inbyggd LED-gul och VDR
Electrical figures
Spänning 24VDC / 48V/50-60Hz
<<Eigenschaften>>
Spole C001
Others
Märke STASTO
