3/2-way valve MV304

Price:

34,20 €
3/2-way valve Series MV Store
  1. Products
  2. Pneumatics
  3. Way-valves - mechanically / manually, logic units
  4. Cam valves
  5. 3/2-way valve Series MV
  6. MV304
3/2-way valve MV304
3/2-way valve MV314
3/2-way valve MV314
37,30 €
37,30 €
5/2-way valve VCMS52M18
5/2-way valve VCMS52M18
41,20 €
41,20 €

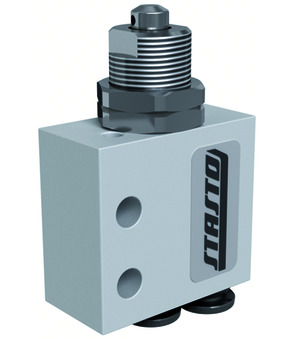

3/2-way valve MV304

3/2-way valve Series MV; Nominal diameter 2,5mm; For panel mounting; Pressure range 0...10bar; Flow rate 60Nl/min; Actuation Cam/spring; Operating force at 6 bar: 12N; Connection 4mm; Function NC

Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.05 Kg
Short Itemnumber:MV304
https://www.stasto.com/web/image/product.template/39130/image_1920?unique=133328d

3/2-way valve Series MV; Nominal diameter 2,5mm; For panel mounting; Pressure range 0...10bar; Flow rate 60Nl/min; Actuation Cam/spring; Operating force at 6 bar: 12N; Connection 4mm; Function NC

34,20 € 34.2 EUR 34,20 €

price on request

  • Connection
  • DN
  • Function
  • Actuation
  • Actuating force at 6 bar

This combination does not exist.

Availability:
Contact Us
dimension
Connection 4 mm
DN 2,5 mm
function
Function NC
Actuation Cam/spring
characteristics
Actuating force at 6 bar 6 N
