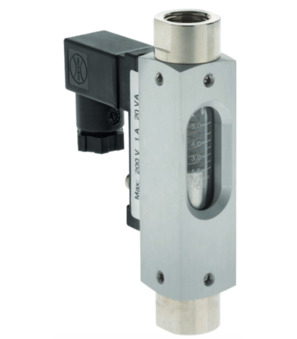

Flow monitors With Inspection glass 1/4"-0,2...1,3-16-AC140/DC200-AC0,7/DC1-90

Flow monitors With Inspection glass 1/4"-0,2...1,3-16-AC140/DC200-AC0,7/DC1-90

Flow monitors With Inspection glass Series FM42-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; NO contact; Connection 1/4"; Switching range 0,2...1,3Nl/min; Maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; Length 90mm

Intrastat No.: 90268080
Country of origin: Germany Made in Europe
Weight: 0.14 Kg
Short Itemnumber: FM4214N1.3

Scope of delivery

flow monitor with connector
https://www.stasto.com/web/image/product.template/155273/image_1920?unique=a921185

flow monitors with inspection glass series FM42-N; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; air scale; switching range at 1 bar absolute; 20°C; NO contact; connection 1/4"; switching range 0,2...1,3Nl/min; maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; length 90mm

355,90 € 355.9 EUR 355,90 €

price on request

excl. tax
  • Connection
  • Length
  • U max.
  • I max.
  • Maximum pressure
  • Switching range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1/4"
Switching range 0,2...1,3 Nl/min
Maximum pressure 16 bar
U max. AC140/DC200 V
All specifications (6)
Documents
Data sheets, drawings and CAD files
Connection 1/4"
Switching range 0,2...1,3 Nl/min
Maximum pressure 16 bar
U max. AC140/DC200 V
I max. AC0,7/DC1 A
Length 90 mm

FM42-14-N-1,3

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
No spare parts are available for this product.
