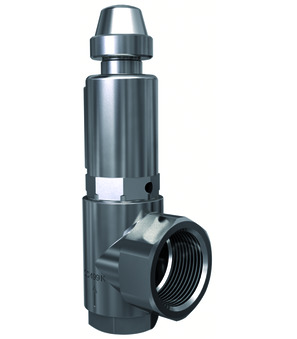

Sikkerhetsventil SV60-10NW-23-16-4T0
Sikkerhetsventil Serie SV60; med luftehendel; med metallbelg; Hus Rustfritt stål 1.4404; Tetning FKM; Applikasjon: gassformige medier; Medietemperatur -20...200°C; Innløp Utvendig gjenge 1"NPT; Utløp Innvendig gjenge 11/2"NPT; DN 23mm; Innstillingstrykk 16/1600; Enhet bar/kPa; inkl. TÜV-Inspeksjonssertifikat EN-10204-3.2; Sertifikat ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME); Inspeksjonssertifikat EN-10204-3.1; for materiale; ATEX-sertifikat; EAC-Sertifikat; med armaturpass og Lasermerking
Opprinnelsesland: Tyskland
Vekt: 2.45 kg
Kort varenummer: SV6010NW23164T0
###ERROR###, product.template, 163466, description_sale, FKM; Anwendung: gasförmige Medien; Mediumstemperatur -20...200°C; Eintritt Aussengewinde 1"NPT; Austritt Innengewinde 11/2"NPT; DN 23mm; Einstelldruck 16/1600; Einheit bar/kPa; inkl. TÜV-Abnahmeprüfzeugnis EN-10204-3.2; Zertifikat ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME); Abnahmeprüfzeugnis EN-10204-3.1; für Material; ATEX-Zertifikat; EAC-Zertifikat; mit Armaturenpass und Lasermarkierung, ma_DE, res.lang(30,)
| <<Abmessung>> | |
|---|---|
| DN | 23 mm |
| <<Ausführung>> | |
| Utførelse | ATEX |
| <<Materialien>> | |
| Tetning | FKM |
| <<Eigenschaften>> | |
| Innstillingstrykk | 16/1600 |
| Medietemperatur | -20...+200 °C |
| Enhet | bar/kPa |
