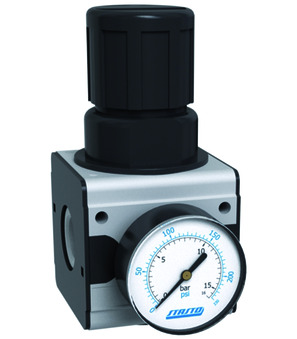

Pressure regulator RE03-18H-0,5/16-MA
Pressure regulator Series Modul RE03; Relieving; Inlet pressure Max. 16bar; Connection 1/8"; Flow at 6bar/Δp=1bar 1100Nl/min; Pressure range 0,5-16bar
Intrastat No.: 84811099
Country of origin: Germany
Weight: 0.3 Kg
Short Itemnumber: RE0318H0.516MA
Country of origin: Germany
Weight: 0.3 Kg
Short Itemnumber: RE0318H0.516MA
Scope of delivery
pressure regulator, manometer
pressure regulator series Modul RE03; relieving; inlet pressure max. 16bar; connection 1/8"; flow at 6bar/Δp=1bar 1100Nl/min; pressure range 0,5-16bar
| dimension | |
|---|---|
| Connection | 1/8" |
| Dimension | 5 |
| pressure | |
| Pressure range | 0,5...16 bar |
| characteristics | |
| Max. inlet pressure | 16 bar |
| Flow at 6bar/Δp=1bar | 1100 Nl/min |
| Others | |
| Brand | STASTO |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Pressure regulator RE03-18H-0,5/16-MA_EN.pdf
Download
Assembly and Operating Instructions
1Operating instructions_Maintenance devices - series Modul_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Maintenance devices - series Modul_EN.pdf
Download
CAD / 3D
1CADSTEP_RE0318H0.516MA.stp
Download
RE03-18H-0,5/16
x 1.0 Pcs
RE03-18H-0,5/16
Pressure regulator; Relieving; Connection 1/8"; Flow at 6bar 1030Nl/min; Pressure range 0,5-16bar; Max. inlet pressure 16bar
MA001-40R-25
x 1.0 Pcs
Bourdon tube manometer MA001-40R-25
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-25; Unit bar; Connection 1/8"
