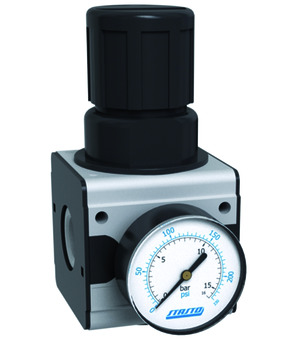

Pressure regulator RE03-14VH-0,5/10-MA
Pressure regulator Series Modul RE03; Relieving; Inlet pressure Max. 16bar; Connection 1/4"; Flow at 6bar/Δp=1bar 1500Nl/min; Pressure range 0,5-10bar
Intrastat No.: 84811099
Country of origin: Germany
Weight: 0.36 Kg
Short Itemnumber: RE0314VH0.510MA
Country of origin: Germany
Weight: 0.36 Kg
Short Itemnumber: RE0314VH0.510MA
Scope of delivery
pressure regulator, manometer
pressure regulator series Modul RE03; relieving; inlet pressure max. 16bar; connection 1/4"; flow at 6bar/Δp=1bar 1500Nl/min; pressure range 0,5-10bar
| dimension | |
|---|---|
| Connection | 1/4" |
| Dimension | 11 |
| pressure | |
| Pressure range | 0,5...10 bar |
| characteristics | |
| Max. inlet pressure | 16 bar |
| Flow at 6bar/Δp=1bar | 1500 Nl/min |
| Others | |
| Brand | STASTO |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Pressure regulator RE03-14VH-0,5/10-MA_EN.pdf
Download
Assembly and Operating Instructions
1Operating instructions_Maintenance devices - series Modul_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Maintenance devices - series Modul_EN.pdf
Download
CAD / 3D
1CADSTEP_RE0314VH0.510MA.stp
Download
WP-RE03-14VH/38
x 1.0 Pcs
WP-RE03-14VH/38
Set of wear parts; For pressure regulator Series Modul; RE03-14VH/38
RE03-14VH-0,5/10
x 1.0 Pcs
RE03-14VH-0,5/10
Pressure regulator; Relieving; Connection 1/4"; Flow at 6bar 1500Nl/min; Pressure range 0,5-10bar; Max. inlet pressure 16bar
MA001-4014R-16-D
x 1.0 Pcs
MA001-4014R-16-D
Bourdon tube manometer; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"
