Valves, butterfly valves and gate valves - automatically operated

Category

Wafer type; Body 1.4408; Gate 1.4401; Metal sealing; Sliding guide Bronze; Gate And Seat Reinforced; Packing Graphite; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature Max. +250°C; Control pressure 5,5...8bar

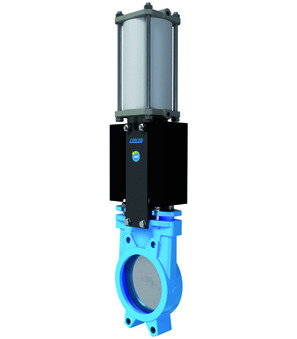

Knife gate valve with double acting actuator Series K1N

Directly operated; Connection flange according to DIN28459; Body And Flange Aluminum; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80 °C

Pinch valve Series PI12

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C

Knife gate valve with electric actuator Series A1ED

Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C

Knife gate valve with electric actuator Series A1ED

Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; NBR; Without piston

Seal kit

Wafer type; Body Cast iron EN-GJL-250; Gate Hardox 600; Soft sealed Flucast-R; With reinforced fixing ring; Packing PTFE-Synthetic/EPDM/Scraper; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 mechanical switches MSU01

Gate valve with double acting pneumatic actuator Series ABZ1

NC; Body Stainless steel 1.4408; Seal PTFE; Weld ends according to DIN 11850 Row 2; For gaseous media; Closing with flow; Medium temperature -30...+170°C

Pneumatically operated seat valve Series SE01-D-ST

NC; Body Stainless steel 1.4408; Cap Plastic; Seal PTFE; Weld ends according to DIN 11850 Row 2; For gaseous media; Closing with flow; Medium temperature -30...+135°C

Pneumatically operated seat valve Series SE18-D-ST

Directly operated; Body Aluminum; Aluminum flange with steel socket; Tube Natural rubber Food safe; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80 °C

Pinch valve Series VF

Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; NBR

Piston

Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U

Piston-rod

Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valve with double acting actuator Series L1N

Directly operated; Connection Female thread; Tube EPDM Food safe White; Control pressure 1,8...2,5 bar higher than effective operating pressure; Medium temperature -10...+120 °C

Pinch valve Series PI08

Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 inductive limit switches M18

Knife gate valve with double acting actuator Series AB1N

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016

Butterfly valve with pneumatic actuator Series BUW6-DSE

Wafer type; Length According to EN558−1R20; Body; Disc And Shaft 1.4408; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -25...+100°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-SSNS-D2

Wafer type; Length According to EN558−1R20; Body Aluminum, Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...10bar

Butterfly valve with bare shaft Series BUW6-ASN-D2

Suitable for Knife gate valve Series AZ, ABZ, ADZ, FZ, LZ And UZ

Spare cylinder

Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUW9-SSRS-S

ATEX II 2 G/D Ex h X; Wafer type;Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUW9-SSRS-S-A

1.4301 Hard chrome plated; Suitable for ABZ1-N3HX61A

Scraper ring Series SR

Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C

Butterfly valve with pneumatic actuator Series BUW9-SSRS-D

Suitable for Pneumatic cylinder Series SHD

Piston-rod

Suitable for Pneumatic cylinder Series PC500

Cylinder tube

Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A

Knife gate valve with double acting actuator Series A1N

Wafer type; Body 1.4408; Gate 1.4401; Soft sealed PTFE; Packing PTFE; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -20...+180 °C

Knife gate valve with double acting actuator Series A1N

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSC-D2

Wafer type; Body Cast iron EN-GJL-250; Gate Hardox 600; Soft sealed Flucast-R; With reinforced fixing ring 1.4301 Hard chrome plated; Packing PTFE-Synthetic/EPDM/Scraper; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 mechanical switches MSU01

Gate valve with double acting pneumatic actuator Series ABZ1

Female thread; Body Brass; Disc PEI (Ultem 1000); Pressure range 0...16Bar; Medium temperature -10...+130°C; Double acting actuator; Control pressure 6...8bar

Butterfly valve with pneumatic actuator Series BU900-D0

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar

Butterfly valve with electrical actuator Series BUW2-DSE-0

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSN-D2

Butterfly valve with electrical actuator Series BUW6-DSE-01

NC; Connection parts 1.4435; Tube FKM; Medium temperature -10...+130°C

Pinch valve Series PI03

Wafer type; Length According to EN558−1R20; Body Steel; Disc And Shaft 1.4408; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar

Butterfly valve with electrical actuator Series BUW6-CSES-0

Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSV-S2

Butterfly valve with pneumatic actuator Series BUW6-DSV-S2-3C

Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 inductive limit switches M18

Knife gate valve with double acting actuator With emergency handwheel Series AB1NE

ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar

Butterfly valve with pneumatic actuator Series BUW2-DSC-D-A

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSP1-D2

ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSP1-D2-A

ATEX II 2 G/D Ex h X; Lug type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE/Inconel 625-Graphite; Nominal flange pressure PN25; Medium temperature -10...+230°C Single acting actuator; Control pressure 5,5...8bar; Fire-safe; ATEX II 2 G/D c TX

Butterfly valve with pneumatic actuator Series BULV-S

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valve with double acting actuator Series AB1N

Directly operated; Body Aluminum; Aluminum flange with stainless steel socket; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80°C

Pinch valve Series PI02

Directly operated; Body Aluminum; Aluminum flange with stainless steel socket; Tube Natural rubber food-safe FDA-approved; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80°C

Pinch valve Series PI02-WRA

Distribution function; 3-way-type; Body Stainless steel AISI 316; Seal PTFE; Female thread; Medium temperature -30...+200°C; Control actuator CA24C 24VAC/DC; Control signal 4-20mA; Position feedback 4-20mA; 2 Limit switch; Characteristic linear; With control cone

Electrical seat valve Series SEC14-CA24C

Wafer type; With DVGW certificate For water; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4021; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -15...+80°C; Medium Water; Pressure range 0...10Bar

Butterfly valve with pneumatic actuator Series BUA-D-DVGW

Suitable for Pinch valve Series PI08

Spare tubes

Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar

Butterfly valve with pneumatic actuator Series BULI-D, BULB-D

Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar

Butterfly valve with pneumatic actuator Series BULI-S, BULB-S

Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valve with double acting actuator Series AB1N

; Suitable for Series SE01, SE02, SE03; Body Brass, Bronze; Seal EPDM

Seal kit

High temperature design; ATEX Area 1,21; NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+200°C; Incl. Splash water protection

Pneumatically operated seat valve Series SE01-ST-HT

Spare body Pneumatically operated seat valves

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C

Butterfly valve with pneumatic actuator Series BUW9-CSIS-S

Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar

Butterfly valve with pneumatic actuator Series BUW9-SSIS-S4

Lug type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C

Butterfly valve with pneumatic actuator Series BUL-CSIS-D

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C

Butterfly valve with pneumatic actuator Series BUW-CSIS-D

ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+230°C

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D-A

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D

Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C

Butterfly valve with electrical actuator Series BUW9-SSRS-0

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C

Butterfly valve with electrical actuator Series BUW9-CSRS-0

;ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar

Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4-A

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C

Butterfly valve with pneumatic actuator Series BUW9-CSRS-S

Lug type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUL-SSRS-S2

ATEX II 2 G/D Ex h X; Lug type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUL-SSIS-S2-A

ATEX II 2 G/D Ex h X; Lug type;Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8b

Butterfly valve with pneumatic actuator Series BUL-SSIS-D2-A

ATEX II 2 G/D Ex h X; Wafer type;Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+425°C

Butterfly valve with pneumatic actuator Series BUW9-CSIS-S-A

NO; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BULG-DSE-T22, BULC-DSE-T22

Width 22mm

Coil Type C015

Connector size 22mm; Form B-ISO

Connector Series C004

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Incl. 2 mechanical limit switches OPEN/CLOSED

Knife gate valve with double acting actuator Series A1N2H2-5-2EM-B

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Incl. 2 inductive limit switches OPEN/CLOSED

Knife gate valve with double acting actuator Series A1N2H2-5-2EM-B

Directly operated; Connection Female thread; Connection part POM White; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective operating pressure; Medium temperature -10...+80 °C

Pinch valve Series PI08

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar

Butterfly valve with electrical actuator Series BUW6-DSE-02

NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C

Pinch valve Series PI03

NO; Connection parts 1.4435; Tube EPDM Food safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -30...+95°C

Pinch valve Series PI04

Directly operated; Body Aluminum; Aluminum flange; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80°C

Pinch valve Series PI02-RAA

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A

Knife gate valve with double acting actuator Series A1N2H2-5-PMB

ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+130°C

Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A

NC; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive limit switches M18

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PIB

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-B

NC (Double acting-Compressed air tank); Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-B

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB

Lug type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUL-CSRS-S2

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C

Knife gate valve with double acting actuator Series A1N2H3-5V

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C

Knife gate valve with double acting actuator Series A1N2H3-5V-B

Knife gate valve with double acting actuator Series A1N2H3-5V-PIB

Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Screws Stainless steel; Packing PTFE-Synthetic/NBR; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive limit switches M18

Knife gate valve with double acting actuator Series A1N2H5-5N-PIB

Knife gate valve with double acting actuator Series A1N2H3-5V-PMB

NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Closing against flow; Medium temperature -40...+180°C

Pneumatically operated seat valve Series 21IA.GC

Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; Consists of Seal kit NBR And Piston

Set of wear parts

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22

ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22-A

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22

ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A

ATEX II 3 G/D; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Metal seal with abrasion protection; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valve with double acting actuator Series A1N4H1-5-B

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A

Knife gate valve with double acting actuator Series AB1N

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05

Knife gate valve with double acting actuator Series A1N-PI

Directly operated; Tri-Clamp connection According to DIN32676 Row A; Connection part Stainless steel; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective operating pressure; Medium temperature -10...+80 °C

Pinch valve Series PI08

Other materiales - A05

Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C

Knife gate valve with electric actuator Series AB1EM2H2-5-B

Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C

Knife gate valve with electric actuator Series AB1EM2I2-5

Body Aluminum; Seals PTFE/FKM; Female thread; Medium temperature -20...+120°C; Back pressure tight; Bi-directional flow

2/2-way coaxial valve Series CSE01/02-AT

Body Stainless steel 1.4404 Seals PTFE/FKM; Female thread; Medium temperature -20...+120°C; Back pressure tight; Bi-directional flow

2/2-way coaxial valve Series CSE01/02-ZT

Pressure range

Loading...
Design

Loading...
Voltage

Loading...
Function

Loading...
Connection

Loading...
DN

Loading...
Flange

Loading...
Switch design

Loading...
Operating pressure

Loading...
Male thread

Loading...
Diameter

Loading...
Female thread

Loading...
Keywords
- Verpackungsmaterial/EPR-Recycling
- Gift Card

Reset

Other materiales - A05

A1N2H2-5-500-PM-B

Knife gate valve with double acting actuator Series A1N2H2-5-PMB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 500mm; Length 110mm; Pressure range 0…4bar

To Series: Knife gate valve with double acting actuator Series A1N2H2-5-PMB

DN	Length	Pressure range	Voltage	Design	Cable length	Function	Switch design	Connection	Flow rate	Actuation	Brand	Type
500 mm	110 mm	0...4 bar	-	-	-	-	-	-	-	-	-	A1N2H2-5-500-PM-B

BULC-200-DSE-S22-A

Butterfly valve with pneumatic actuator Series BULC-S ATEX II 2GD Ex h X EPT 14; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Flange PN10; Actuator PAS2005

To Series: Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A

DN	Length	Flange	Pressure range	Design	Brand	Type
200 mm	60 mm	PN10	0...10 bar	ATEX	STASTO	BULC-200-DSE-S22-A

PI03-12-EZS-52

Pinch valve Series PI03; NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C; RP 1/2"; DN 15mm; Pressure range 0…3bar; Control pressure 4,4…10bar; Diameter Actuator 50mm

To Series: Pinch valve Series PI03

Female thread	DN	Diameter Actuator	Pressure range	Control pressure	Type
RP 1/2"	15 mm	50 mm	0...3 bar	4,4...10 bar	PI03-12-EZS-52

BULC-200-SSES-S22-A3C

butterfly valve with pneumatic actuator series BULC-SSES-S22-A, BULY-DSE-S22-A; ATEX II 2 G/D Ex h X; lug type; length according to EN558−1R20; housing, disc and shaft AISI 316; liner EPDM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+130°C; DN 200mm; length 60mm; pressure range 0…10bar; flange PN10; actuator PAS2005

To Series: Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A

DN	Length	Flange	Pressure range	Design	Brand	Type
200 mm	60 mm	PN10	0...10 bar	ATEX	STASTO	BULC-200-SSES-S22-A3C

PI03-12-EZS-53

Pinch valve Series PI03; NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C; RP 1/2"; DN 15mm; Pressure range 0…6bar; Control pressure 5,6…10bar; Diameter Actuator 50mm

To Series: Pinch valve Series PI03

Female thread	DN	Diameter Actuator	Pressure range	Control pressure	Type
RP 1/2"	15 mm	50 mm	0...6 bar	5,6...10 bar	PI03-12-EZS-53

BULC-250-DSE-S22-A

Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A; ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0…10bar; Flange PN10; Actuator PAS2005

To Series: Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A

DN	Length	Flange	Pressure range	Design	Brand	Type
250 mm	68 mm	PN10	0...10 bar	ATEX	STASTO	BULC-250-DSE-S22-A

Pinch valve Series PI03

NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C

To Series: Pinch valve Series PI03

Grundversion

Female thread	DN	Diameter Actuator	Pressure range	Control pressure	Type	Sequence
RP 1/2"	15 mm	80 mm	0...6 bar	3,5...10 bar	PI03-12-EZS-81	32410002
RP 3/4"	20 mm	50 mm	-	? bar	PI03-34-EZS-51	32410003
RP 3/4"	20 mm	50 mm	0...3 bar	4,4...10 bar	PI03-34-EZS-52	32410004
RP 3/4"	20 mm	50 mm	0...6 bar	5,6...10 bar	PI03-34-EZS-53	32410005
RP 3/4"	20 mm	80 mm	0...6 bar	3,5...10 bar	PI03-34-EZS-81	32410006
RP 1"	25 mm	80 mm	0...6 bar	4,4...10 bar	PI03-10-EZS-82-011	32410008
RP 1 1/4"	32 mm	80 mm	0...6 bar	4,4...10 bar	PI03-114-EZS-82	32410009
RP 1 1/2"	40 mm	125 mm	0...4 bar	2,2...10 bar	PI03-112-EZS-1252	32410010
RP 2"	50 mm	125 mm	0...4 bar	2,2...10 bar	PI03-20-EZS-1252	32410011

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-B

To Series: Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-B

Grundversion

DN	Length	Pressure range	Brand	Type	Sequence
350 mm	96 mm	0...6 bar	STASTO	A1S2H2-5-350-B	32440000
400 mm	100 mm	0...6 bar	STASTO	A1S2H2-5-400-B	32440001
450 mm	106 mm	0...5 bar	STASTO	A1S2H2-5-450-B	32440002
500 mm	110 mm	0...4 bar	STASTO	A1S2H2-5-500-B	32440003

A1S2H2-5-50-PIB

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PIB; NC; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive limit switches M18; DN 50mm; Length 40mm; Pressure range 0…10bar

To Series: Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PIB

DN	Length	Pressure range	Voltage	Design	Cable length	Function	Switch design	Connection	Flow rate	Actuation	Brand	Type
50 mm	40 mm	0...10 bar	-	-	-	-	-	-	-	-	STASTO	A1S2H2-5-50-PIB

Search

Your Cart

Categories

My Cart

My Wishlist

Valves, butterfly valves and gate valves - automatically operated

Pressure range

Design

Voltage

Function

Connection

DN

Flange

Switch design

Operating pressure

Male thread

Diameter

Female thread

Keywords

Other materiales - A05

A1N2H2-5-500-PM-B

BULC-200-DSE-S22-A

PI03-12-EZS-52

BULC-200-SSES-S22-A3C

PI03-12-EZS-53

BULC-250-DSE-S22-A

Pinch valve Series PI03

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-B

A1S2H2-5-50-PIB

Social media

Guest

My Cart

My Wishlist

My Account

My Orders

Price List

Edit Profile

Manage Payment Methods

Change Password

Logout
