Valves, butterfly valves and gate valves - automatically operated

STASTO Allgemein com
Grundversion
DN Length Pressure range Voltage Design Cable length Function Switch design Connection Flow rate Actuation Type Sequence
200 mm 60 mm 0...10 bar - - - - - - - - A1N2H2-5-200-PM-B 32400016
250 mm 70 mm 0...10 bar - - - - - - - - A1N2H2-5-250-PMB 32400020
250 mm 70 mm 0...10 bar - - - - - - - - AL1N2H2-5-250-PMB 32400021
300 mm 70 mm 0...6 bar - - - - - - - - A1N2H2-5-300-PM-B 32400023
350 mm 96 mm 0...6 bar - - - - - - - - A1N2H2-5-350-PM-B 32400026
400 mm 100 mm 0...6 bar - - - - - - - - A1N2H2-5-400-PM-B 32400027
450 mm 106 mm 0...5 bar - - - - - - - - A1N2H2-5-450-PM-B 32400028
500 mm 110 mm 0...4 bar - - - - - - - - A1N2H2-5-500-PM-B 32400029
Varianten
DN Length Pressure range Voltage Design Cable length Function Switch design Connection Flow rate Actuation Type Sequence
200 mm 60 mm 0...10 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (1 Pieces) - - - A1N2H2-5-200-PM-B-ABS42-C001-22-C002-31-6-MSU01A 32400017
200 mm 60 mm 0...10 bar 24VDC With integrated LED-yellow and VDR - NC/NO contact Mechanical limit switch (2 Pieces) - - - A1N2H2-5-200-PM-B-ABS40-CS02400-6-14423-0525-MSU01A/2 32400018
200 mm 60 mm 0...10 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (1 Pieces) - - - A1N2H2-5-200-PM-B-ABS40-CS23050-6-14123-0000-S-MSU01A 32400019
250 mm 70 mm 0...10 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (1 Pieces) - - - A1N2H2-5-250-PMB-ABS40-CS23050-6-14123-0000-S-MSU01A 32400022
300 mm 70 mm 0...6 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (2 Pieces) - - - A1N2H2-5-300-PM-B-ABS42-C001-22-C002-31-6-MSU01A/2 32400024
300 mm 70 mm 0...6 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (1 Pieces) - - - A1N2H2-5-300-PM-B-ABS40-CS23050-6-14123-0000-S-MSU01A 32400025

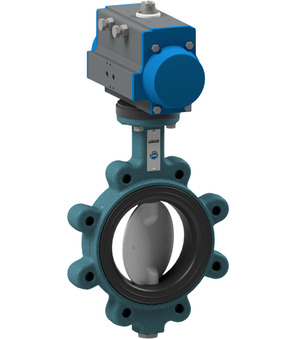

BULC-200-DSE-S22-A
Butterfly valve with pneumatic actuator Series BULC-S ATEX II 2GD Ex h X EPT 14; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Flange PN10; Actuator PAS2005
To Series: Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A
DN Length Flange Pressure range Design Type
200 mm 60 mm PN10 0...10 bar ATEX BULC-200-DSE-S22-A

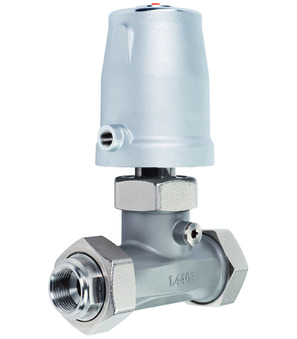

PI03-12-EZS-52
Pinch valve Series PI03; NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C; RP 1/2"; DN 15mm; Pressure range 0…3bar; Control pressure 4,4…10bar; Diameter Actuator 50mm
To Series: Pinch valve Series PI03
Female thread DN Diameter Actuator Pressure range Control pressure Type
RP 1/2" 15 mm 50 mm 0...3 bar 4,4...10 bar PI03-12-EZS-52
BULC-200-SSES-S22-A3C
butterfly valve with pneumatic actuator series BULC-SSES-S22-A, BULY-DSE-S22-A; ATEX II 2 G/D Ex h X; lug type; length according to EN558−1R20; housing, disc and shaft AISI 316; liner EPDM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+130°C; DN 200mm; length 60mm; pressure range 0…10bar; flange PN10; actuator PAS2005
To Series: Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A
DN Length Flange Pressure range Design Type
200 mm 60 mm PN10 0...10 bar ATEX BULC-200-SSES-S22-A3C
PI03-12-EZS-53
Pinch valve Series PI03; NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C; RP 1/2"; DN 15mm; Pressure range 0…6bar; Control pressure 5,6…10bar; Diameter Actuator 50mm
To Series: Pinch valve Series PI03
Female thread DN Diameter Actuator Pressure range Control pressure Type
RP 1/2" 15 mm 50 mm 0...6 bar 5,6...10 bar PI03-12-EZS-53
BULC-250-DSE-S22-A
Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A; ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0…10bar; Flange PN10; Actuator PAS2005
To Series: Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A
DN Length Flange Pressure range Design Type
250 mm 68 mm PN10 0...10 bar ATEX BULC-250-DSE-S22-A
PI03-12-EZS-81
Pinch valve Series PI03; NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C; RP 1/2"; DN 15mm; Pressure range 0…6bar; Control pressure 3,5…10bar; Diameter Actuator 80mm
To Series: Pinch valve Series PI03
Female thread DN Diameter Actuator Pressure range Control pressure Type
RP 1/2" 15 mm 80 mm 0...6 bar 3,5...10 bar PI03-12-EZS-81
