Special armatures

STASTO Allgemein com
CVF-20-NC-027
2/2-way coaxial valve; Directly operated; Flange DN20; PN16; 0...16bar; 24VDC; NC; Body: Zinc plated steel; Medium: Air Contaminated; Incl. LED; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Special version
CVTE-15-NC-060-ABS56-C001-03-C002-31-6
CVTE-15-NC-060
2/2-way coaxial valve; Externally controlled; 3/4" NPT; 0...100bar; DN15; NC; Body: Stainless steel; Medium: Hydrogen; Special seals; Incl. certificate for vacuum; Incl. inspection certificate 3.1; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); ATEX Ex II 2G Ex h IIC T-20°C...+70°C Gb / Ex II 2D Ex h IIIC T-20°C...+70°C Db; Free of oil and grease for hydrogen; Special version
ABS56
Mounted pilot valve; Speed control; Suitable for 2/2-way coaxial valve And 3/2-way-coaxial valve; Externally controlled; DN15...DN50; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR)
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
CVT-10-NC-505
2/2-way coaxial valve; Directly operated; G1/4"; 0...16bar; 230VAC; DN10; NC; Body: Stainless steel; Medium: Water; Incl. LED; Incl. 1 inductive limit switch (B); Closed position; Special version
CVT-10-NC-506
2/2-way coaxial valve; Directly operated; G1/4"; 0...16bar; 230VAC; DN10; NC; Body: Stainless steel; Medium: Compressed air; Incl. LED; Incl. 1 inductive limit switch (B); Closed position; Special version
CVT-10-NC-507
2/2-way coaxial valve; Directly operated; G1/2"; 0...16bar; 24VDC; DN10; NC; Body: Brass; Medium: Oil/Refrigerant R134a; Incl. LED; Special seals; Incl. certificate for vacuum; Incl. inspection certificate 3.1; Incl. material certificate; Special version
SG06-50-UWF80-02

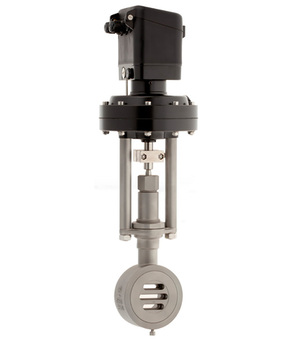

Control valve Type SG06; DN50; PN10/40; NC; Material: Steel/1.0619; Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 28 (63%), Characteristic linear, Actuator diameter 80mm; Digital positioner; 2-wire; 4-20mA; Fittings and tubes made of stainless steel
CVF-15-NC-062
2/2-way coaxial valve; Directly operated; Flange PN16, DN15; 0...16bar; 110VDC; NC; Body: Stainless steel; Medium: ??????????; Special seals; Incl. inspection certificate 3.1; Incl. 2 inductive limit switches OPEN/CLOSED; Special version
SG07-100-WWC2503-01
Control valve Type SG07; DN100; PN10/40; NC; Material: 1.4408, Fixed disc 1.4571 Coated; Sliding disc Carbon material With Carrier With Silicone adhesive Glued; Kvs-value 77 (100%), Characteristic equal percentage, Diaphragm actuator Stainless steel; Actuator diameter 250mm; Digital positioner With stainless steel base plate; 4-wire; 4-20mA; Pressure range 0-24bar; Max. Media temperature +300°C; Free from parts From Antimony, Lead, Cadmium, Copper, Tin, Zinc, Brass, Bronze, Bronze And Aluminium alloys; Coupling, Fittings And Control line From Stainless steel
CVF-50-NC-032
2/2-way coaxial valve; Directly operated; Flange DN50; PN16; 0…16bar; 24VDC; NC; Body: Steel nickel plated; Medium: Industrial water; Incl. LED; Special seals; Special version
CVFV3-P-80-N0-002
3/2-way-coaxial valve; Externally controlled; Flange DN80 PN40; 0...40bar; 24VDC; NO; Body: Steel nickel plated; Medium: Synthetic oil; Incl. 5/2-way pilot valve; Incl. LED; Incl. 1 inductive limit switch Position CLOSED (I.); CE0036-Mark; Special seals;Special version
CVT-15-NC-486
2/2-way coaxial valve; Directly operated; G3/8"; 0...100bar; 220VDC; DN10; NC; Body: Zinc plated steel; Medium: Heating oil 60°C; Terminal box; Special seals; Inspection certificate 3.1; Mounting bracket; ATEX CE Ex II 3G Ex ec IIC T3 Ta -20...+80°C Gc; CE Ex II 3D Ex tc IIIC T195°C Ta -20...+80°C Dc; Ex II 3G Ex h IIC T3 Gc; Ex II 3D Ex h IIIC T195°C Dc; Special version
CVTE-15-NC-003-ABS56-C001-03-C002-31-6
CVTE-15-NC-003
2/2-way coaxial valve; G3/4"; 0...100bar; DN15; NC; Externally controlled; Body: Brass; Medium: Emulsion; Special version
ABS56
Mounted pilot valve; Speed control; Suitable for 2/2-way coaxial valve And 3/2-way-coaxial valve; Externally controlled; DN15...DN50; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR)
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
CVTE-P-32-NC-023
2/2-way coaxial valve; Externally controlled; G11/2"; 0...100bar; 24VDC, DN32; NC; Body: Stainless steel; Medium: Demineralized water; Incl. 5/2-way pilot valve; Special version
CVT-10-NC-509
2/2-way coaxial valve; Directly operated; G3/4"; 0...63bar; 24VDC; DN10; NC; Body: Brass; Medium: Oil/Emulsion; Coil with connection M12x1; Special seals; Special version
EP0S30-4P6-1S020-11-00
I/P positioner for single-acting actuators; 8049-4P6; 4-wire; 24VDC; Input signal 4-20mA; Electrical connection M12x1 5-pin; Linear potentiometer with standard probe rod (L=99,6); Indicator disc for probe rod made of PA; Pneumatic connection 1/8"; Body Aluminum/Plastic
CVF-15-NC-063
2/2-way coaxial valve; Directly operated; Flange DN15 PN40; 0...40bar; 24VDC; NC; Body: Stainless steel; Medium: Demineralized water; Incl. LED; Special seals; Incl. inspection certificate 3.1; Incl. material certificate; Incl. EAC-Certificate; Special version
CVF-40-NC-044
2/2-way coaxial valve; Directly operated; Flange DN40 PN40; 0...40bar; 220VDC; NC; Body: Stainless steel; Medium: Demineralized water; Incl. LED; Incl. 1 inductive limit switch (B); Position OPEN; Special seals; Incl. Voltage tolerance test +10%/-15%; Incl. inspection certificate 3.1; Incl. material certificate; Incl. EAC-Certificate; Special version
CVT-15-N0-069
2/2-way coaxial valve; Directly operated; G1/2"; 0...16bar; 24VDC; DN15; NO; Body: Stainless steel; Medium: Demineralized water; Incl. LED; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Special version
CVTDH-10-N0-020
Coax-2/2-way-lateral valve; Directly operated; G3/8"; 0...150bar; 220VDC; DN10; NO; Body: Stainless steel; Medium: Diesel oil; Incl. LED; Incl. 1 inductive limit switch (B.); Position CLOSED; Special seals; Incl. Voltage tolerance test +10%/-15%; Incl. inspection certificate 3.1; Incl. material certificate; Incl. EAC-Certificate; Special version
CVT-10-NC-510
2/2-way coaxial valve; Directly operated; G1/2"; 0...16bar; 230VAC; DN10; NC; Body: Brass; Medium: Oil/Refrigerant R134a; Incl. LED; Special seals; Incl. certificate for vacuum; Incl. inspection certificate 3.1; Incl. material certificate; Special version
