BUW6-100-DSD-PG2

BUW6-100-DSD-PG2

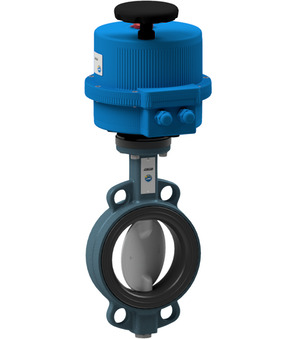

Butterfly valve with electrical actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 100-240VAC; Accumulator for safety position NC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 10.82 Kg
Short Itemnumber: BUW6100DSDPG2
https://www.stasto.com/web/image/product.template/139148/image_1920?unique=24fee4a

butterfly valve with electrical actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; pressure range 0...10bar; DN 100mm; length 52mm; operating time 27s; voltage 100-240VAC; accumulator for safety position NC

1.279,40 € 1279.4 EUR 1.279,40 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-100-DSD-B x 1.0
    Butterfly valve with bare shaft BUW6-100-DSD-B
    Butterfly valve with bare shaft Series BUW6-DSD-B, BUW4-DSD-B; Wafer type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 100mm; Length 52mm; Pressure range 0...16bar
    Add to Cart
    Electrical actuator VB110-H-AKKU
    VB110-H-AKKU x 1.0
    Electrical actuator VB110-H-AKKU
    Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100…240VAC; Function NC
    Add to Cart
