BUW6-080-DUE-PG2
REP-SV06-10-16-0,4-V-3C-003
REP-SV06-10-16-0,4-V-3C-003
307,20 €
307,20 €
NSKU63-75-F
NSKU63-75-F
171,03 €
171,03 €

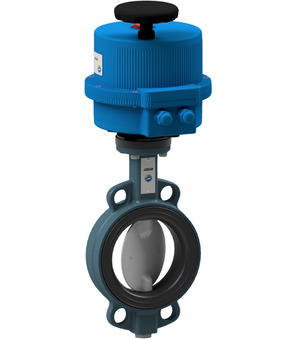

BUW6-080-DUE-PG2

butterfly valve with electrical actuator; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; disc zinc plated steel; operating time 9s; voltage 100...240VAC; accumulator for safety position; function NC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.85 Kg
Short Itemnumber:BUW6080DUEPG2
https://www.stasto.com/web/image/product.template/232376/image_1920?unique=7f1694c

butterfly valve with electrical actuator; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; disc zinc plated steel; operating time 9s; voltage 100...240VAC; accumulator for safety position; function NC

972,40 € 972.4 EUR 972,40 €

price on request

  • DN
  • Length
  • Voltage
  • Disc
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 80 mm
Length 46 mm
Electrical key figures
Voltage 100-240VAC
materials
Disc Zinc plated steel
characteristics
Actuator VB060H
Operating time 9 s
BUW6-080-DUE-B x 1.0
Butterfly valve with bare shaft BUW6-080-DUE-B
Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Disc Stahl verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
Electrical actuator VB060-H-AKKU
VB060-H-AKKU x 1.0
Electrical actuator VB060-H-AKKU
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100…240VAC; Function NC
Add to Cart
