BUW2-200-DPE-D31

Name: BUW2-200-DPE-D31
Brand: STASTO
SKU: BUW2-200-DPE-D31
Price: 702.9 EUR
Availability: InStock

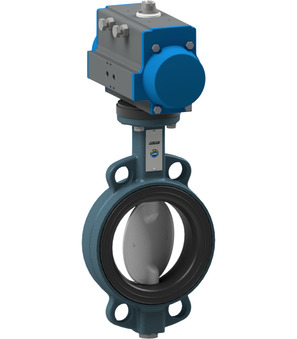

Butterfly valve with pneumatic actuator Series BUW2; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated steel (DN50...100); Ductile iron EN-GJS-400-15 Zinc plated (>DN100); Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Water 0-6bar; DN 200mm; Length 60mm; Pressure range 0-6bar; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 18.99 Kg
Short Itemnumber: BUW2200DPED31

702,90 € 702.9 EUR 702,90 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW2-200-DPE-B x 1.0

Butterfly valve with bare shaft BUW2-200-DPE-B

Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated ductile iron EN-GJS-400-15; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/ANSI150

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

APKTGB0056 x 1.0
