BULG-125-DSN-L-A3C
BULG-100-DSW-B
BULG-100-DSW-B
price on request
BUW6-050-DUE-G
BUW6-050-DUE-G
274,90 €
274,90 €

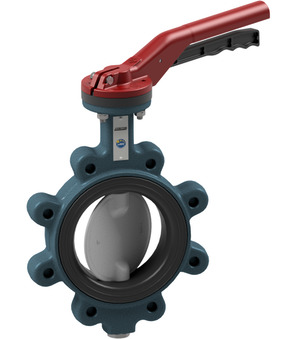

BULG-125-DSN-L-A3C

Butterfly valve with hand lever; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 125mm; Length 56mm; Pressure range 0-16bar; Flange PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; ATEX Ex II 2GD c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.75 Kg
Short Itemnumber:BULG125DSNLA3C
https://www.stasto.com/web/image/product.template/157201/image_1920?unique=dbc39ae

butterfly valve with hand lever; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 125mm; length 56mm; pressure range 0-16bar; flange PN10/16; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; ATEX Ex II 2GD c TX

282,60 € 282.6 EUR 282,60 €

price on request

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
BULG-125-DSN-B-A3C x 1.0
BULG-125-DSN-B-A3C
Butterfly valve with bare shaft Series BULG-DSN-A3C; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; ATEX Ex II 2GD c TX
Add to Cart
HLBU-125150-A
HLBU-125150-A x 1.0
HLBU-125150-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 125;150mm
Add to Cart
​
