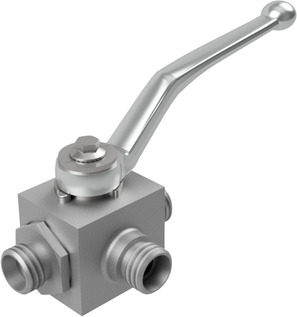

High pressure ball valve BA696-10L-L

High pressure ball valve BA696-10L-L

High pressure ball valve Series BA696, BA697; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball Stainless steel 1.4571/1.4404; Seals POM/NBR; Medium temperature -30...+100°C; For liquids; Connection 10L/M16x1,5; Nominal diameter 8mm; Pressure range 0...500bar; Length 74mm; Ball L

Intrastat No.: 84818081
Country of origin: Germany Made in Europe
Weight: 1.531 Kg
Short Itemnumber: BA69610LL
https://www.stasto.com/web/image/product.template/146369/image_1920?unique=f96ddcc

high pressure ball valve series BA696, BA697; 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); body, ball stainless steel AISI 316Ti/AISI 316L; seals POM/NBR; medium temperature -30...+100°C; for liquids; connection 10L/M16x1,5; nominal diameter 8mm; pressure range 0...500bar; length 74mm; ball L

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • DN
  • Length
  • Ball
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 10L/M16x1,5
Pressure range 0...500 bar
DN 8 mm
Length 74 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Connection 10L/M16x1,5
Pressure range 0...500 bar
DN 8 mm
Length 74 mm
Ball L

BA696-10L-L

Documents

1 Documents

English
ZIP

Data Sheets

1
BA696-10L-L-01 x 1.0 Pcs
BA696-10L-L-01
High pressure ball valve; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread 2x According to ISO 8434-1 (DIN 2353); 1x G1/4"; Body, Ball Stainless steel 1.4571/1.4404; Seals POM/NBR; Medium temperature -30...+100°C; For liquids; Connection 10L/M16x1,5; Nominal diameter 8mm; Pressure range 0...500bar; Length 74mm; Ball L
