BA668-14-D0-01

BA668-14-D0-01

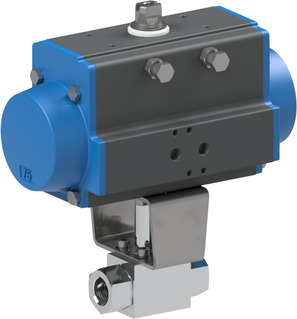

Ball valve with pneumatic actuator; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK/FKM; With erosion protection ring; For gases; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+60°C; G 1/4"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Germany
Weight: 2.57 Kg
Short Itemnumber: BA66814D001
https://www.stasto.com/web/image/product.template/163358/image_1920?unique=94b97ec

ball valve with pneumatic actuator; female thread; body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals PEEK/FKM; with erosion protection ring; for gases; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+60°C; G 1/4"; nominal diameter 10mm; pressure range 0...500bar; length 72mm; actuator PAD063

672,50 € 672.5 EUR 672,50 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA668-38-B-02 x 1.0
    BA668-38-B-02
    High pressure ball valve; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571; Seals POM/FKM-Special; With erosion protection ring; For gases; Medium temperature -40...+100°C; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Flange ISO5211 F03; Square 9mm
    Add to Cart
    Pneumatic actuator PAD063
    PAD063 x 1.0
    Pneumatic actuator PAD063
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
    Add to Cart
    04806007007 x 1.0
    04806007007
    Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
    Add to Cart
    A4/223/96 x 1.0
    A4/223/96
    Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
