BA591-40-D0

Name: BA591-40-D0
Brand: STASTO
SKU: BA591-40-D0
Price: 2199.1 EUR
Availability: InStock

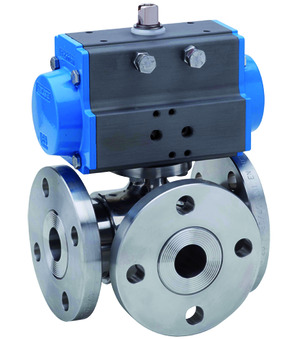

Flanged ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE/Kalrez; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+160°C; Nominal diameter 40mm; Length 200mm; Pressure range 0-40bar; Flange PN40; Actuator PAD075; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 21.09 Kg
Short Itemnumber: BA59140D0

flanged ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE/Kalrez; double acting actuator; control pressure 5,5...8bar; medium temperature -40...+160°C; nominal diameter 40mm; length 200mm; pressure range 0-40bar; flange PN40; actuator PAD075; ball T

2.199,10 € 2199.1 EUR 2.199,10 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA591-40-B x 1.0

BA591-40-B

Flanged ball valve; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/Kalrez; Sealing on three ports; Medium temperature -40...+160°C; Nominal diameter 40mm; Length 200mm; Flange PN40; Pressure range 0-40bar; Ball T; Flange ISO5211 F05; Square 14mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
