BA541-20-0L-02

BA541-20-0L-02

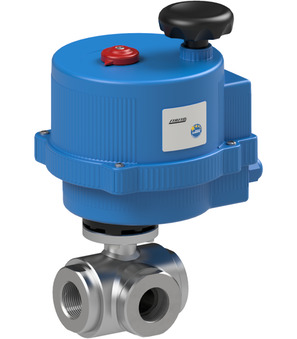

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 2"; DN 50mm; Pressure range 0…40bar; Length 144mm; Operating time 9s; Voltage 24VAC/DC; Ball T; Body Actuator Aluminum; IP68

Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.53 Kg
Short Itemnumber: BA541200L02
https://www.stasto.com/web/image/product.template/240194/image_1920?unique=94b97ec

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 2"; DN 50mm; pressure range 0…40bar; length 144mm; operating time 9s; voltage 24VAC/DC; ball T

2.203,10 € 2203.1 EUR 2.203,10 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 2"
DN 50 mm
Length 144 mm
Designs
Ball T
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB0600E9Q17
Operating time 9 s
Ball valve made of stainless steel BA541-20-B
BA541-20-B x 1.0
Ball valve made of stainless steel BA541-20-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 2"; Nominal diameter 50mm; Pressure range 0…40bar; Length 144mm; Ball T; Flange ISO5211 F07; Square 17mm
Add to Cart
VB060M-0E9-Q17 x 1.0
VB060M-0E9-Q17
Electrical actuator; Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-star 17mm; Voltage 24VAC/DC; Protection class IP68
