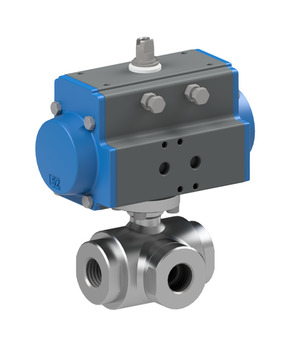

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball T
ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball T
Technical specifications
| Pressure range | 0...64 bar |
|---|---|
| DN | 32 mm |
| Length | 118 mm |
| Ball | T |
| Pressure range | 0...64 bar |
| DN | 32 mm |
| Length | 118 mm |
| Ball | T |
| Female thread | G 1 1/4" |
| Design | ATEX |
| Brand | STASTO |
