BA387-34-D0-A

BA387-34-D0-A

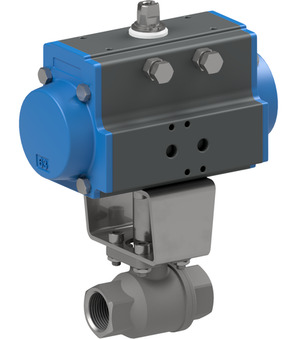

ball valve with pneumatic actuator series BA387-D0-A; ; ATEX II 2 G/D; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced with carbographite/FFKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; RP 3/4"; nominal diameter 20mm; pressure range 0...105bar; length 79mm; actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Short Itemnumber: BA38734D0A
https://www.stasto.com/web/image/product.template/233524/image_1920?unique=e148276

ball valve with pneumatic actuator series BA387-D0-A; ; ATEX II 2 G/D; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced with carbographite/FFKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; RP 3/4"; nominal diameter 20mm; pressure range 0...105bar; length 79mm; actuator PAD063

471,90 € 471.9 EUR 471,90 €

price on request

excl. tax
  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...105 bar
Female thread RP 3/4"
DN 20 mm
Length 79 mm
All specifications (6)
Pressure range 0...105 bar
Female thread RP 3/4"
DN 20 mm
Length 79 mm
Design ATEX
Brand STASTO
Ball valve made of stainless steel BA387-34-L-A
BA387-34-L-A x 1.0 Pcs
Ball valve made of stainless steel BA387-34-L-A
ball valve made of stainless steel series BA387-A; ATEX II 2 G/D; fire-safe; TA-Luft; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced with carbographite/FFKM; medium temperature -20...+198°C; RP 3/4"; nominal diameter 20mm; pressure range 0...105bar; length 79mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3783 x 1.0 Pcs
RI3783
Mounting bracket; F05/F03-F04,14-7
