BA355-12-0L-01
BA355-12-0H-01
BA355-12-0H-01
price on request
BA356-12N-D0-01
BA356-12N-D0-01
price on request

BA355-12-0L-01

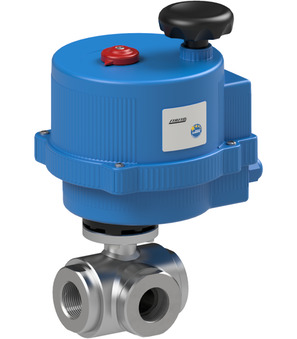

Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE-metal reinforced/FKM; Full bore; Medium temperature -20...+200°C; G 1/2"; DN 15mm; Pressure range 0...100bar; Length 82mm; Operating time 8s; Voltage 24VAC/DC; Ball T; Actuator Oversized VB030-H

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.65 Kg
Short Itemnumber:BA355120L01
https://www.stasto.com/web/image/product.template/156393/image_1920?unique=f771134

ball valve with electrical actuator; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE-metal reinforced/FKM; full bore; medium temperature -20...+200°C; G 1/2"; DN 15mm; pressure range 0...100bar; length 82mm; operating time 8s; voltage 24VAC/DC; ball T; actuator oversized VB030-H

999.999,00 € 999999.0 EUR 999.999,00 €

price on request

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Ball valve made of stainless steel BA355-12-B
    BA355-12-B x 1.0
    Ball valve made of stainless steel BA355-12-B
    Ball valve made of stainless steel Series BA355, BA388; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE-metal reinforced/FKM; Sealing on three ports; Medium temperature -20...+200°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 82mm; Ball T; Flange ISO5211 F03; Square 9mm
    Add to Cart
    Electrical actuator VB030-L
    VB030-L x 1.0
    Electrical actuator VB030-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
    Add to Cart
    04805007001 x 1.0
    04805007001
    Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
    Add to Cart
    IV/00001/07 x 1.0
    IV/00001/07
    Bolt; 1.4305; Diameter 20mm; Height of the bolt 48mm; Male square 11mm; Height of the male square 14mm; Female square 9mm; Height of the female square 8mm
    Add to Cart
    ​
