BA338-50-D0

Name: BA338-50-D0
SKU: BA338-50-D0
Price: 999999.0 EUR
Availability: InStock

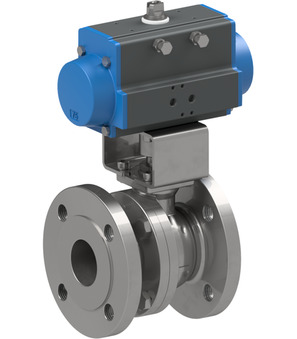

Flanged ball valve with pneumatic actuator; Fire-safe; TA-Luft; Antistatic design; Length According to EN558−1 R27; Full bore; Body, Ball 1.4307; Seals PTFE-Fiberglass-Reinforced/FFKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Length 150mm; Double acting actuator; Control pressure 5,5...8bar; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.97 Kg
Short Itemnumber:BA33850D0

flanged ball valve with pneumatic actuator; fire-safe; TA-Luft; antistatic design; length according to EN558−1 R27; full bore; body, ball AISI 304L; seals PTFE-fiberglass-reinforced/FFKM; medium temperature -20...+160°C; with locking device; nominal diameter 50mm; pressure range 0...40bar; flange PN40; length 150mm; double acting actuator; control pressure 5,5...8bar; actuator PAD075

price on request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA338-50-LLD x 1.0

BA338-50-LLD

Flanged ball valve; Fire-safe; TA-Luft; Antistatic design; Length According to EN558−1 R27; Full bore; Body, Ball 1.4307; Seals PTFE-Fiberglass-Reinforced/FFKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Length 150mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

RI3522 x 1.0
