BA336-34-S0-A

Name: BA336-34-S0-A
Brand: STASTO
SKU: BA336-34-S0-A

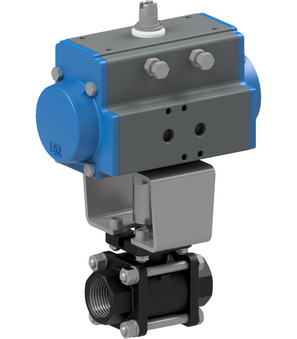

Ball valve with pneumatic actuator; ATEX II 2 G/D c T3; TA-LuftFemale thread; Body Steel, Ball 1.4301; Seals PTFE/FFKM Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.01 Kg
Short Itemnumber: BA33634S0A

ball valve with pneumatic actuator; ATEX II 2 G/D c T3; TA-Luftfemale thread; body steel, ball AISI 304; seals PTFE/FFKM without dead space; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS0635

On request

Design
- ATEX

This combination does not exist.

Availability:

Design

ATEX

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BA33634S0A.stp

Download

BA336-34-L-A x 1.0

Ball valve made of steel 3/4"-20-0…40-76

Ball valve made of steel; ATEX II 2 G/D c T3; TA-Luft; Full bore; Three-parts type; Female thread; Body, Steel; Ball 1.4301; Seals PTFE/FFKM Without dead space; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0…40bar; Length 76mm

Add to Cart

PAS0635 x 1.0

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3783 x 1.0
