BA261-25-D0-A

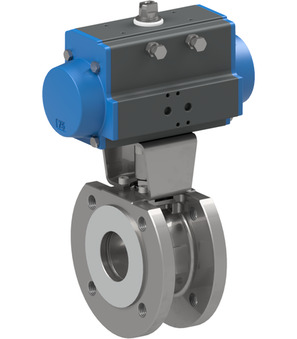

flanged ball valve with pneumatic actuator series BA261; ATEX II 2 G/D; fire-safe; TA-Luft; flange PN40; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 25mm; length 57mm; actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy

Weight: 5.276 Kg
Short Itemnumber: BA26125D0A

flanged ball valve with pneumatic actuator series BA261; ATEX II 2 G/D; fire-safe; TA-Luft; flange PN40; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 25mm; length 57mm; actuator PAD052

662,30 € 662.3 EUR 662,30 €

excl. tax

DN
- 25 mm
Length
- 57 mm
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAD052
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...40 bar
DN	25 mm
Length	57 mm
Design	ATEX

All specifications (5)

Specifications
Spare Parts

Pressure range	0...40 bar
DN	25 mm
Length	57 mm
Design	ATEX
Brand	STASTO

Flanged ball valve BA261-25-L-A

BA261-25-L-A x 1.0 Pcs

Flanged ball valve BA261-25-L-A

Flanged ball valve Series BA261-L-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Flange PN40; Length 57mm

Pneumatic actuator PAD052

PAD052 x 1.0 Pcs

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

RI3542 x 1.0 Pcs

RI3542

Mounting bracket, F05/F03-F04, Bolt 11-8
