BA144-25-S0
BA112-20-L-3C
BA112-20-L-3C
367,50 €
367,50 €
PRSG165S
PRSG165S
price on request

BA144-25-S0

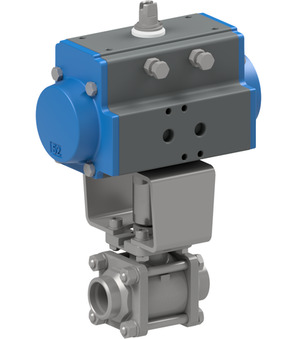

Ball valve with pneumatic actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Length 92mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.51 Kg
Short Itemnumber:BA14425S0
https://www.stasto.com/web/image/product.template/226785/image_1920?unique=07bf1b6

Ball valve with pneumatic actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Length 92mm; Actuator PAS0635

508,00 € 508.0 EUR 508,00 €

price on request

  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 25 mm
Length 92 mm
pressure
Pressure range 0...40 bar
characteristics
Actuator PAS0635
BA144-25-L
BA144-25-L x 1.0
BA144-25-L
Ball valve made of stainless steel Series BA144-L; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/EPDM; Medium temperature -30...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm
Add to Cart
Pneumatic actuator PAS0635
PAS0635 x 1.0
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
Add to Cart
​
