Flanged ball valve with pneumatic actuator Series BA132 Store

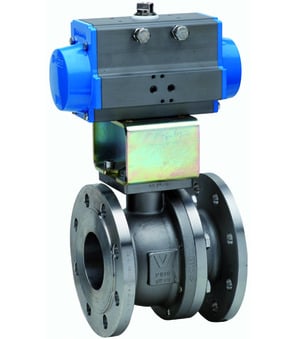

Flanged ball valve with pneumatic actuator BA132-150-S0-A

Name: Flanged ball valve with pneumatic actuator BA132-150-S0-A
Brand: STASTO
SKU: BA132-150-S0-A
Price: 11190.1 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA132; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body 1.4408; Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; ATEX; Nominal diameter 150mm; Pressure range 0...40bar; Flange PN40; Length 350mm; Actuator PAS2707

Intrastat No.: 84818081
Country of origin: Italy
Weight: 187.7 Kg
Short Itemnumber: BA132150S0A

flanged ball valve with pneumatic actuator series BA132; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body AISI 316; ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; ATEX; nominal diameter 150mm; pressure range 0...40bar; flange PN40; length 350mm; actuator PAS2707

11.190,10 € 11190.1 EUR 11.190,10 €

DN
- 150 mm
Length
- 350 mm
Flange
- PN40
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAS2707

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	150 mm
Length	350 mm
Flange	PN40
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS2707

BA132-150-LLD-A x 1.0

Flanged ball valve BA132-150-LLD-A

Flanged ball valve Series BA132; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals RPTFE/PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 150mm; Pressure range 0-40bar; Flange PN40; Length 350mm

Add to Cart

PAS2707 x 1.0

Pneumatic actuator PAS2707

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 270mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 1076Nm

Add to Cart

RI3753 x 1.0
