BA082-25-S2-A

Name: BA082-25-S2-A
Brand: STASTO
SKU: BA082-25-S2-A

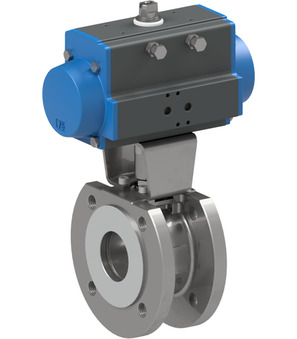

Flanged ball valve with pneumatic actuator; ATEX II 2G/D; Fire Safe; TA-Luft; Flange ANSI150; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Pressure range 0..20bar; Nominal diameter 25mm; Length 46mm; Actuator PAS1004

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.45 Kg
Short Itemnumber: BA08225S2A

flanged ball valve with pneumatic actuator; flange ANSI150; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; pressure range 0..20bar; nominal diameter 25mm; length 46mm; actuator PAS1004

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

720191-25 x 1.0

720191-25

Flanged ball valve; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange ANSI150; Flange thread Metrical; Full bore; Body, Ball 1.4401; Seals PTFE-Carbon graphite reinforced/FKM; Pressure range 0...20bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 46mm

Add to Cart

PAS1004 x 1.0

Pneumatic actuator PAS1004

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 43,9Nm

Add to Cart

RI4320 x 1.0
