BA081-34-T0

BA081-34-T0

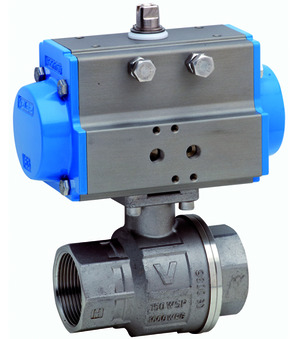

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 78mm; Actuator PAS0525; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.718 Kg
Short Itemnumber: BA08134T0
https://www.stasto.com/web/image/product.template/160623/image_1920?unique=3970b0b

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-40bar; length 78mm; actuator PAS0525; safety position NO

317,10 € 317.1 EUR 317,10 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA081-34-B
    BA081-34-B x 1.0
    Ball valve made of stainless steel BA081-34-B
    Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 3/4"; Nominal diameter 20mm; Pressure range 0...64bar; Length 78mm
    Add to Cart
    Pneumatic actuator PAS0525-B
    PAS0525-B x 1.0
    Pneumatic actuator PAS0525-B
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
