BA080-34-0H-01
BA389-25-S0-A3C
BA389-25-S0-A3C
624,20 €
624,20 €
BA329-10-S0
BA329-10-S0
617,70 €
617,70 €

BA080-34-0H-01

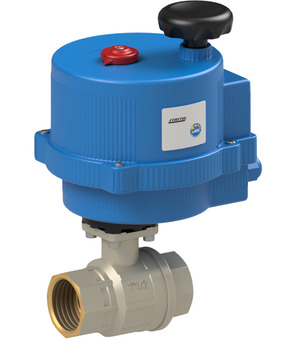

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 8s; Voltage 100-240VAC; With electric actuator VB030

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.563 Kg
Short Itemnumber:BA080340H01
https://www.stasto.com/web/image/product.template/142448/image_1920?unique=d16d8d3

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM/EPDM; medium temperature 0...+100°C; RP 3/4"; DN 20mm; pressure range 0-40bar; length 76mm; operating time 8s; voltage 100-240VAC; with electric actuator VB030

630,30 € 630.3 EUR 630,30 €

price on request

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Ball valve made of brass 2500-3/4"-A
    2500-3/4"-A x 1.0
    Ball valve made of brass 2500-3/4"-A
    Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm; Flange ISO5211 F03; Square 9mm
    Add to Cart
    Electrical actuator VB030-H
    VB030-H x 1.0
    Electrical actuator VB030-H
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
    Add to Cart
    ​
