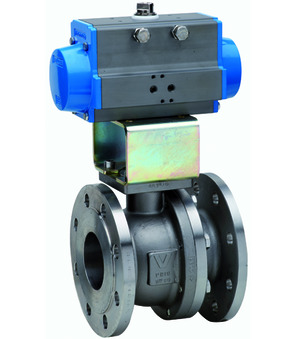

BA051-150-D0

Name: BA051-150-D0
SKU: BA051-150-D0
Price: 5448.5 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Stem seal 2-fold PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; Actuator PAD125

Intrastat No.: 84818081
Country of origin: Italy
Weight: 83.43 Kg
Short Itemnumber:BA051150D0

flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1 R27; body, ball AISI 316; stem seal 2-fold PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 150mm; pressure range 0-16bar; flange PN16; length 350mm; actuator PAD125

5.448,50 € 5448.5 EUR 5.448,50 €

Design
- ATEX

This combination does not exist.

Availability:

Add to Cart

Specifications
Spare Parts

Design

ATEX

760000-150 x 1.0

Flanged ball valve 760000-150

Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm

Add to Cart

PAD125 x 1.0

Pneumatic actuator PAD125

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm

Add to Cart

RI3553 x 1.0
