BA049-40-T0

BA049-40-T0

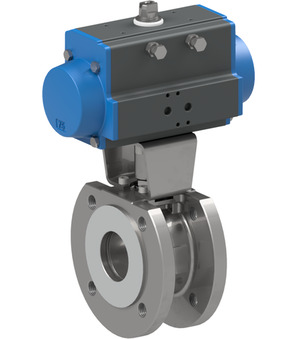

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator NO; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.79 Kg
Short Itemnumber: BA04940T0
https://www.stasto.com/web/image/product.template/147642/image_1920?unique=3970b0b

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator NO; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 40mm; length 63,5mm; actuator PAS0855

892,50 € 892.5 EUR 892,50 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Flanged ball valve 721000-40
    721000-40 x 1.0
    Flanged ball valve 721000-40
    Flanged ball valve Series 721000; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm
    Add to Cart
    PAS0855-B x 1.0
    PAS0855-B
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
    Add to Cart
