BA048-150-S0
5PCDH10DRNC-519190
5PCDH10DRNC-519190
2.174,90 €
2.174,90 €
CVCDH-P-10-N0-003
CVCDH-P-10-N0-003
2.175,70 €
2.175,70 €

BA048-150-S0

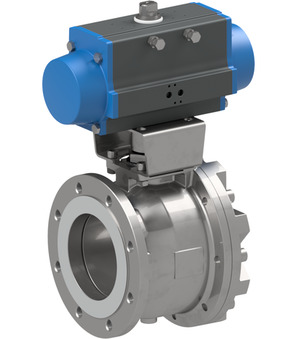

Ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 150mm; Length 232mm; Actuator PAS2005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 119.84 Kg
Short Itemnumber:BA048150S0
https://www.stasto.com/web/image/product.template/107975/image_1920?unique=e4e3f65

ball valve with pneumatic actuator; flange PN16; body, ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 150mm; length 232mm; actuator PAS2005

6.134,20 € 6134.2 EUR 6.134,20 €

price on request

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Flanged ball valve 720000-150
    720000-150 x 1.0
    Flanged ball valve 720000-150
    Flanged ball valve Series 720000; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Length 232mm
    Add to Cart
    Pneumatic actuator PAS2005
    PAS2005 x 1.0
    Pneumatic actuator PAS2005
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm
    Add to Cart
    ​
