BA046-40-CL

Name: BA046-40-CL
SKU: BA046-40-CL
Price: 1488.8 EUR
Availability: InStock

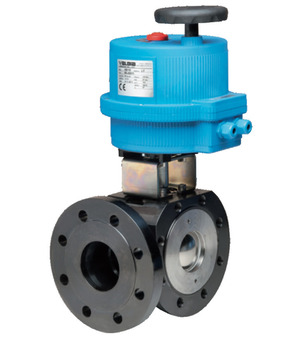

Flanged ball valve with electrical actuator; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; DN ball 32mm; Length 71mm; Ball L; Operating time 9s; Voltage 24VAC/DC; Incl. Positioner 4-20mA/0-10V;

Intrastat No.: 84818081
Country of origin: Italy
Weight: 12.12 Kg
Short Itemnumber:BA04640CL

flanged ball valve with electrical actuator; 3-way-type; sealing on two sides; pressure inlet just in front; reduced bore; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; pressure range 0...16bar; medium temperature -20...+160°C; nominal diameter 40mm; DN ball 32mm; length 71mm; ball L; operating time 9s; voltage 24VAC/DC; incl. positioner 4-20mA/0-10V;

1.488,80 € 1488.8 EUR 1.488,80 €

This combination does not exist.

Availability:

Add to Cart

Specifications
Spare Parts

No Specifications

776000-40 x 1.0

Flanged ball valve 776000-40

Flanged ball valve Series 776000, 776001; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Nominal diameter 40mm; DN ball 32mm; Length 71mm; Ball L

Add to Cart

VB060-RE9-Q14 x 1.0

VB060-RE9-Q14

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-star 14mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3002 x 1.0
