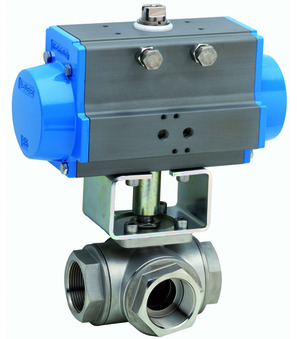

Ball valve with pneumatic actuator BA038-10-2S0-01

Name: Ball valve with pneumatic actuator BA038-10-2S0-01
Brand: STASTO
SKU: BA038-10-2S0-01
Price: 840.5 EUR
Availability: InStock

Ball valve with pneumatic actuator; Inverse direction of rotation; Series BA037, BA038; 3-way-type; Reduced bore; Flow path 02; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 1"; Nominal diameter 20mm; Length 102,4mm; Actuator PAS0855-A; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.89 Kg
Short Itemnumber: BA038102S001

ball valve with pneumatic actuator; inverse direction of rotation; series BA037, BA038; 3-way-type; reduced bore; flow path 02; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 1"; nominal diameter 20mm; length 102,4mm; actuator PAS0855-A; ball T

840,50 € 840.5 EUR 840,50 €

Female thread
- G 1"
DN
- 20 mm
Length
- 102,4 mm
Ball
- T
Actuator
- PAS0855

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 1"
DN	20 mm
Length	102,4 mm
Designs
Ball	T
characteristics
Actuator	PAS0855

BA038-10-L x 1.0

Ball valve made of stainless steel BA038-10-L

Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C; G 1"; Nominal diameter 20mm; Pressure range 0...64bar; Length 102,4mm; Ball T

Add to Cart

PAS0855-A x 1.0

Pneumatic actuator PAS0855-A

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Inverse direction of rotation; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

RI3771 x 1.0
