BA034-40-S0

BA034-40-S0

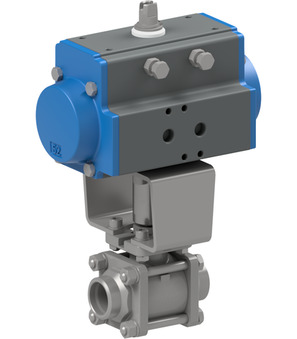

ball valve with pneumatic actuator; TA-Luft; butt weld ends; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.86 Kg
Short Itemnumber: BA03440S0
https://www.stasto.com/web/image/product.template/172222/image_1920?unique=3970b0b

ball valve with pneumatic actuator; TA-Luft; butt weld ends; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAS0855

698,70 € 698.7 EUR 698,70 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA034-40-L
    BA034-40-L x 1.0
    Ball valve made of stainless steel BA034-40-L
    Ball valve made of stainless steel Series BA034-L; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm
    Add to Cart
    Pneumatic actuator PAS0855
    PAS0855 x 1.0
    Pneumatic actuator PAS0855
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
    Add to Cart
