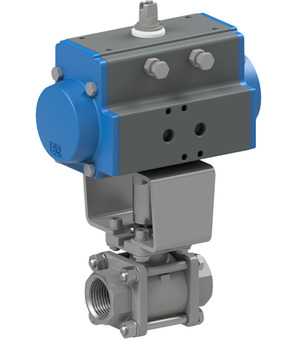

BA033-14-D0-01

BA033-14-D0-01

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0-64bar; length 57mm; actuator PAD032-H; high temperature design

Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.863 Kg
Short Itemnumber: BA03314D001
https://www.stasto.com/web/image/product.template/177447/image_1920?unique=3970b0b

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0-64bar; length 57mm; actuator PAD032-H; high temperature design

326,50 € 326.5 EUR 326,50 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel 710000-1/4"
    710000-1/4" x 1.0
    Ball valve made of stainless steel 710000-1/4"
    Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0-64bar; Length 57mm
    Add to Cart
    Pneumatic actuator PAD032-H
    PAD032-H x 1.0
    Pneumatic actuator PAD032-H
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm
