A1EN2DI2-5-200-B

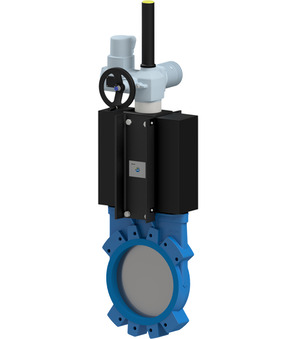

Knife gate valve with electric actuator Series A1EN2DI2-5-B; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Actuator AUMA SA07.6
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: A1EN2DI25200B
Knife gate valve with electric actuator Series A1EN2DI2-5-B; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Actuator AUMA SA07.6
| dimension | |
|---|---|
| DN | 200 mm |
| Length | 60 mm |
| pressure | |
| Pressure range | 0...7 bar |
| characteristics | |
| Actuator | AUMA SA07.2 |
